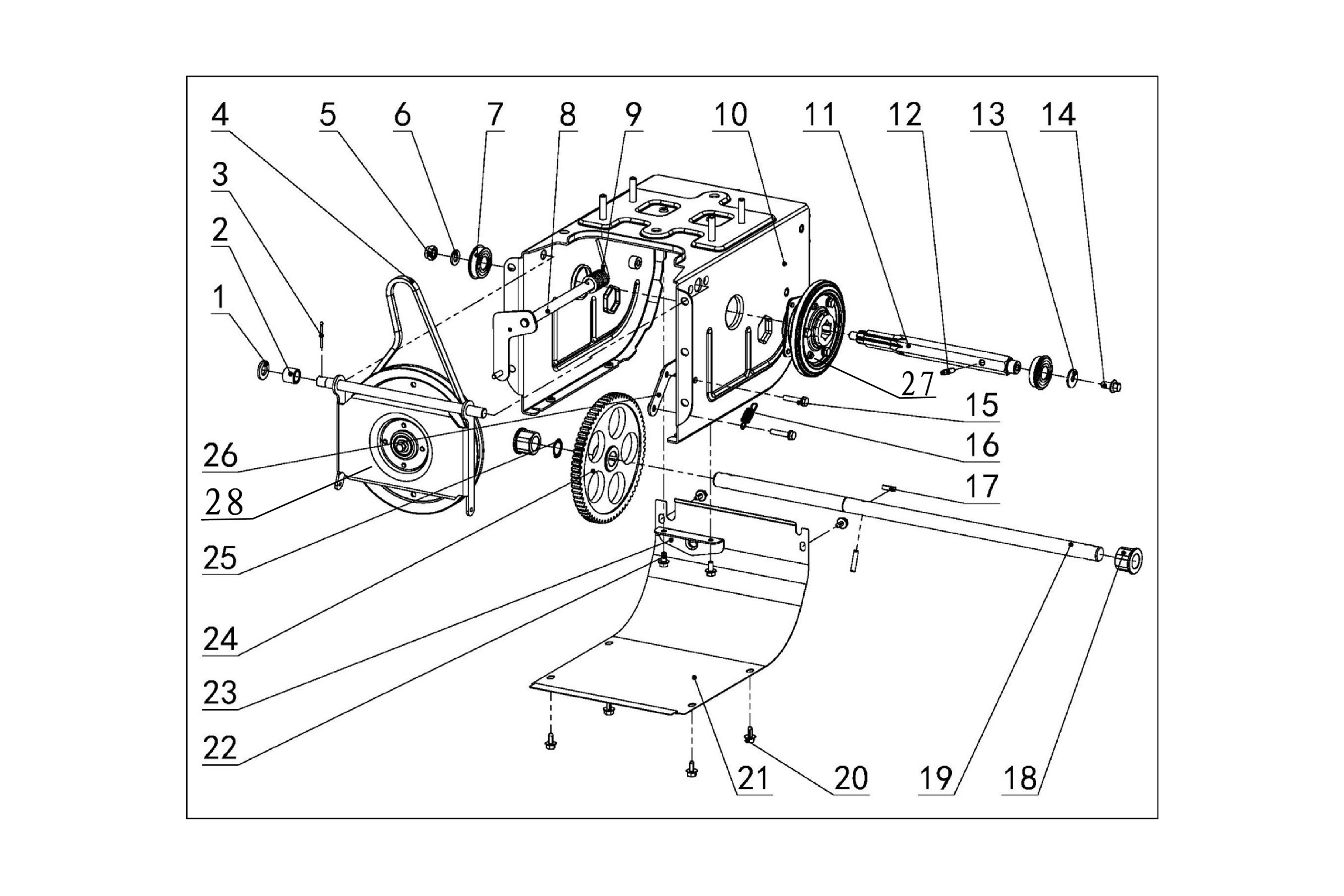

Motor Box Assembly

Grouped product items
No.	Item No.	Product Name	Price
1	901-370	Flat Washer 25x13x2.5mm (Zn)	CA$2.25	901-370
2	105-092	Sleeve Bushing 19x13.2x16.5mm	CA$3.41	105-092
3	900-731	Split Pin 2.5x30mm	CA$3.33	900-731
4	105-093	Drive Belt (Truflex G, 3LXA809)	CA$19.46	105-093
5	900-276	Nylon Insert Lock Nut, Hex M10x1.5 (Zn)	CA$2.25	900-276
6	900-095	Flat Washer 20x10x2mm (Zn)	CA$2.25	900-095
7	103-426	Bearing 6203RS	CA$8.26	103-426
8	105-094	Shifting Fork	CA$10.36	105-094
9	901-372	Extension Spring, Shifting fork	CA$4.43	901-372
10	105-095	Motor Box Shroud (BLK)	CA$54.02	105-095
11	105-096	Shaft, Friction Gear Assembly	CA$16.45	105-096
12	901-373	Spring Pin 6x28mm	CA$2.54	901-373
13	900-313	Flat Washer 24x8x2mm (Zn)	CA$2.07	900-313
14	900-083	Bolt, Flange M8x16 (Zn)	CA$2.18	900-083
15	901-374	Bolt with flat washer, Hex M6x30 (Zn)	CA$2.15	901-374
16	901-375	Spring, Driven Pulley	CA$2.61	901-375
17	102-938	Woodruff key 5x7.5x19mm	CA$3.33	102-938
18	105-097	Bushing, Driving Shaft	CA$5.12	105-097
19	105-098	Driving Shaft	CA$19.31	105-098
20	901-376	Self-tapping Screw, Phillips Flanged Hex Head M6.0x12	CA$2.44	901-376
21	105-099	Motor Box Cover (Bottom)	CA$14.46	105-099
22	900-001	Bolt, Flange M6x12 (Zn)	CA$2.08	900-001
23	105-100	Mounting Bracket, Shifting Fork	CA$4.76	105-100
24	105-101	Gear	CA$27.40	105-101
25	900-817	Circlip 19 mm	CA$2.78	900-817
26	105-102	Plate Bracket	CA$5.19	105-102
27	105-103	Friction Gear Assembly	CA$41.44	105-103
28	105-104	Driven Pulley Assembly	CA$47.94	105-104
