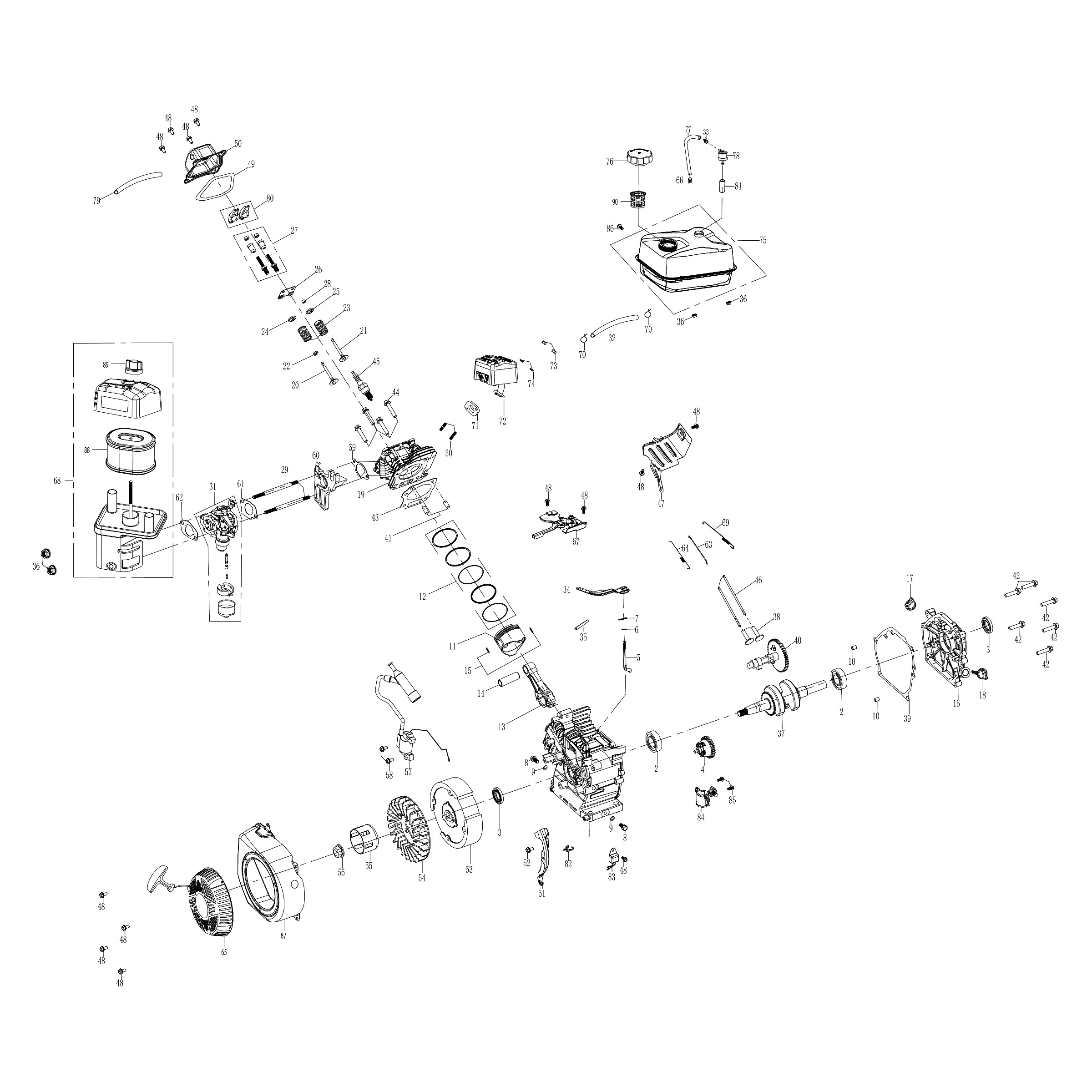

Engine

Grouped product items
No. Item No. Product Name Price Qty
1 101-828 Crankcase
CA$53.18
101-828
2 101-451 Bearing 6205
CA$8.62
101-451
3 101-452 Oil Seal 41.25x25xH6mm
CA$5.53
101-452
4 101-453 Governor Assembly
CA$6.14
101-453
5 101-454 Governor Arm Shaft
CA$3.97
101-454
6 900-112 Flat Washer 13x6x0.95mm (BLK)
CA$2.04
900-112
7 101-262 Cotter Pin
CA$1.99
101-262
8 900-101 Drain Bolt, Flange M10x1.25x15 (Zn)
CA$2.61
900-101
9 900-100 Flat Washer 15x10x1.5mm (Zn)
CA$2.04
900-100
10 900-329 Dowel Pin 8x14mm
CA$2.04
900-329
11 101-456 Piston (170F, H46.5mm)
CA$13.79
101-456
12 101-457 Piston Ring Set (170F)
CA$9.02
101-457
13 101-458 Connecting Rod Assembly
CA$11.79
101-458
14 101-495 Piston Pin 18x53mm
CA$5.01
101-495
15 900-104 Piston Clip 18mm
CA$1.99
900-104
16 102-767 Crankcase Cover
CA$16.56
102-767
17 102-768 Engine Oil Plug
CA$2.87
102-768
18 102-769 Engine Oil Dipstick
CA$2.87
102-769
19 101-832 Cylinder Head (170F)
CA$29.59
101-832
20 101-462 Intake Valve
CA$7.44
101-462
21 101-463 Exhaust Valve
CA$7.44
101-463
22 101-464 Valve Oil Seal
CA$3.89
101-464
23 900-056 Valve Spring
CA$2.70
900-056
24 101-507 Valve Spring Seat
CA$3.89
101-507
25 101-508 (Exhaust) Valve Spring Seat
CA$4.34
101-508
26 101-465 Push Rod Guider
CA$3.41
101-465
27 900-105 Bolt and Nut Set, Valve Rocker
CA$4.19
900-105
28 101-467 Valve Cap
CA$3.65
101-467
29 900-173 Stud Bolt M6x110
CA$2.87
900-173
30 900-107 Stud Bolt M8x40 (BLK)
CA$2.87
900-107
31 101-833 Carburetor
CA$26.00
101-833
32 101-834 Fuel Hose 4x8x155mm
CA$5.12
101-834
33 900-036 Hose Clamp 10mm
CA$2.51
900-036
34 101-469 Regulating Arm
CA$4.91
101-469
35 101-716 Wiring Harness Clip
CA$2.44
101-716
36 900-025 Nut, Serrated Flange M6 (Zn)
CA$1.99
900-025
37 102-770 Crankshaft
CA$26.99
102-770
38 101-472 Valve Lifter
CA$3.90
101-472
39 101-473 Crankcase Gasket
CA$5.49
101-473
40 101-474 Camshaft Assembly
CA$16.86
101-474
41 900-109 Dowel Pin 10x14mm
CA$2.04
900-109
42 900-064 Bolt, Flange M8x30 (Zn)
CA$2.41
900-064
43 101-475 Cylinder Head Gasket
CA$5.93
101-475
44 900-108 27mm-thread Bolt, Flange M8x60 (Zn)
CA$3.07
900-108
45 101-476 Spark Plug (F7TC)
CA$7.80
101-476
46 101-477 Push Rod
CA$3.55
101-477
47 101-478 Air Deflector
CA$5.19
101-478
48 900-001 Bolt, Flange M6x12 (Zn)
CA$2.08
900-001
49 101-479 Cylinder Head Cover Gasket
CA$3.41
101-479
50 101-480 Cylinder Head Cover
CA$8.46
101-480
51 101-836 Wind Cover
CA$4.11
101-836
52 900-175 Bolt, Flange M6x20 (Zn)
CA$2.07
900-175
53 101-837 Flywheel Assembly
CA$23.34
101-837
54 101-483 Flywheel Fan (Plastic)
CA$5.12
101-483
55 101-484 Starting Flange
CA$5.12
101-484
56 900-110 Nut, Serrated Flange M14 (Zn)
CA$3.76
900-110
57 101-485 Ignition Coil
CA$16.82
101-485
58 900-089 Bolt, Flange M6x25 (Zn)
CA$2.18
900-089
59 101-486 Inlet Gasket
CA$2.18
101-486
60 101-487 Carburetor Connecting Block
CA$4.19
101-487
61 101-488 Carburetor Gasket
CA$2.07
101-488
62 101-489 Air Filter Gasket
CA$2.07
101-489
63 101-490 Pulling Rod
CA$2.35
101-490
64 900-344 Fine Regulating Spring
CA$2.30
900-344
65 102-367 Recoil Starter
CA$14.90
102-367
66 900-155 Hose Clamp 9.5mm
CA$2.25
900-155
67 102-771 Regulating Mount
CA$7.19
102-771
68 102-772 Air Filter Assembly
CA$12.75
102-772
69 900-228 Back Spring
CA$2.30
900-228
70 900-067 Hose Clamp 7.5mm
CA$2.41
900-067
71 101-842 Exhaust Gasket
CA$2.25
101-842
72 102-773 Muffler
CA$13.30
102-773
73 900-059 Nut, Hex M8 (Zn)
CA$2.07
900-059
74 900-063 Spring Washer 8mm (BLK)
CA$1.99
900-063
75 102-774 Fuel Tank
CA$21.39
102-774
76 101-845 Fuel Cap
CA$8.46
101-845
77 101-846 Gas Return Hose (fuel tank & air filter)
CA$4.56
101-846
78 101-263 Purge Valve
CA$10.75
101-263
79 101-587 Breath Hose
CA$3.91
101-587
80 101-466 Valve Rocker
CA$3.24
101-466
81 101-847 Breath Hose Sleeve
CA$2.44
101-847
82 900-176 Wire Clamp
CA$2.61
900-176
83 101-502 Amplifier
CA$5.80
101-502
84 101-455 Engine Oil Sensor
CA$9.31
101-455
85 900-085 Bolt, Flange M6x16 (Zn)
CA$2.07
900-085
86 900-004 21mm-thread Bolt, Flange M6x30 (Zn)
CA$2.18
900-004
87 102-368 Fan Cover
CA$14.01
102-368
88 102-205 Air Filter (Cartridge)
CA$7.92
102-205
89 900-230 Wing Nut
CA$2.61
900-230
90 102-206 Fuel Strainer
CA$3.55
102-206
102-693 Carburetor Jet Kit (2000-3000ft, 3000-6000ft, 6000-7000ft)
CA$5.55
102-693
