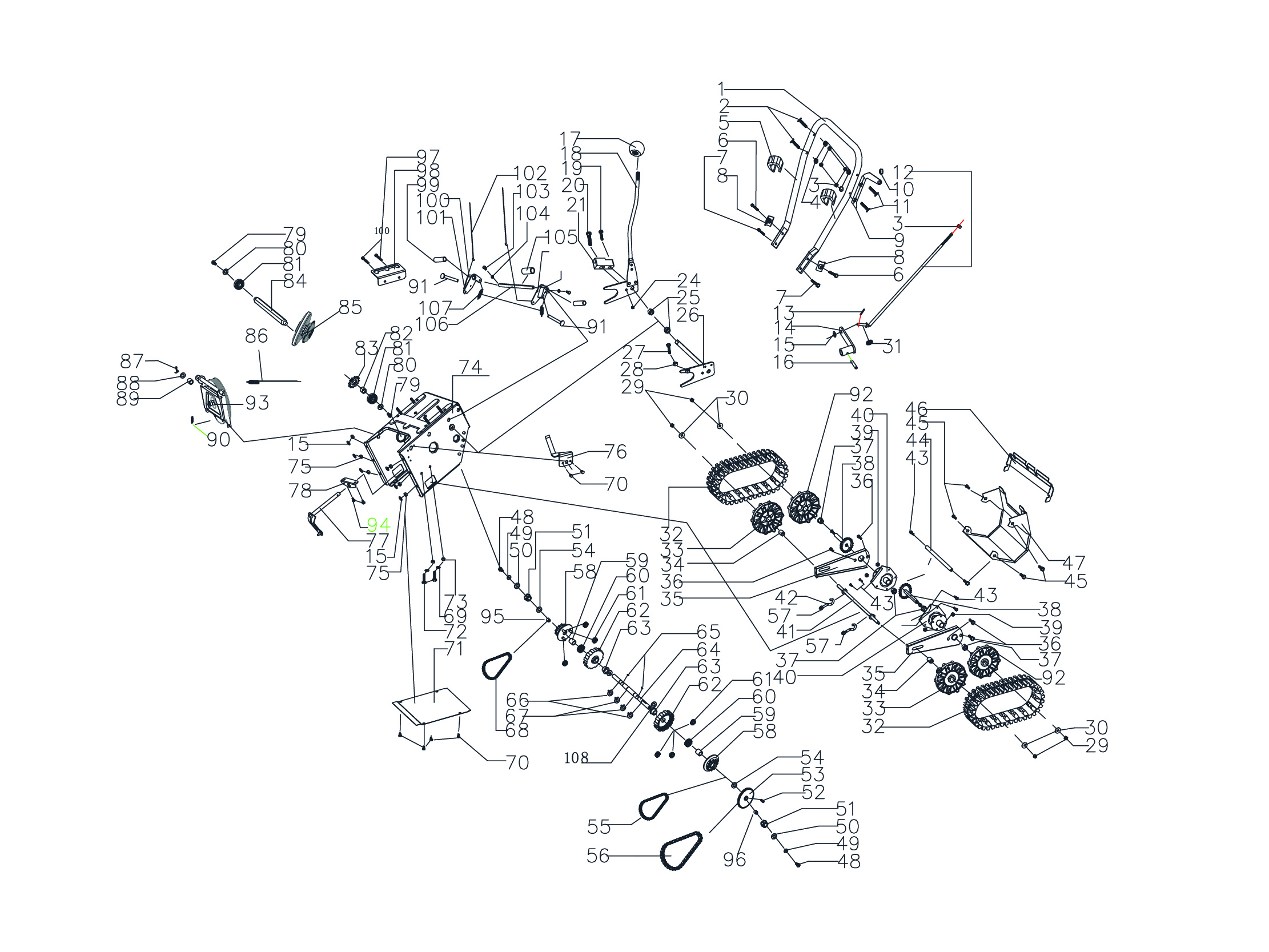

| 1 |
102-878 |
Lower Handle (grey, 2022 version)
|
CA$25.47
|
|
|
102-878 |
| 2 |
900-693 |
Bolt, Wave Head M8x40 (Zn)
|
CA$3.33
|
|
|
900-693 |
| 3 |
900-081 |
Nut, Serrated Flange M8 (Zn)
|
CA$2.18
|
|
|
900-081 |
| 4 |
900-652 |
Curved Washer 22x8x2mm (Zn)
|
CA$3.33
|
|
|
900-652 |
| 5 |
901-082 |
Wire Clip 25mm (C Shape)
|
CA$8.78
|
|
|
901-082 |
| 6, 11 |
900-082 |
Bolt, Flange M8x45 (Zn)
|
CA$2.57
|
|
|
900-082 |
| 7, 19 |
900-172 |
Bolt, Flange M8x20 (Zn)
|
CA$2.07
|
|
|
900-172 |
| 8 |
102-869 |
Bracket, Handle
|
CA$3.33
|
|
|
102-869 |
| 9 |
102-828 |
Mounting Bracket, Chute Rocker Arm
|
CA$6.47
|
|
|
102-828 |
| 10 |
102-842 |
Plastic Seal
|
CA$3.33
|
|
|
102-842 |
| 12 |
102-813 |
Speed Selector Rod
|
CA$11.60
|
|
|
102-813 |
| 13 |
102-833 |
Boe-tie Cotter Pin 2mm
|
CA$1.99
|
|
|
102-833 |
| 14 |
102-868 |
Shifting Fork Arm (2022 version)
|
CA$5.49
|
|
|
102-868 |
| 15, 104 |
900-097 |
Flat Washer 16x8x1.5mm (Zn)
|
CA$1.99
|
|
|
900-097 |
| 16 |
900-670 |
Spring Pin 6×30mm (BLK)
|
CA$3.33
|
|
|
900-670 |
| 17 |
102-932 |
Ball Knob
|
CA$7.41
|
|
|
102-932 |
| 18 |
102-879 |
Fork (Right)
|
CA$7.41
|
|
|
102-879 |
| 20 |
900-718 |
Stud Bolt, Forks M10x45 (Zn)
|
CA$3.33
|
|
|
900-718 |
| 21 |
102-880 |
Block
|
CA$4.50
|
|
|
102-880 |
| 24, 39, 75 |
900-692 |
Nylon Insert Lock Nut, Hex M8 (Zn)
|
CA$2.41
|
|
|
900-692 |
| 25, 82 |
102-921 |
Sleeve, Hex Shaft
|
CA$4.50
|
|
|
102-921 |
| 26 |
102-882 |
Fork (Left)
|
CA$7.41
|
|
|
102-882 |
| 27 |
900-675 |
Bolt, Hex M12x70 (Zn)
|
CA$3.33
|
|
|
900-675 |
| 28 |
900-673 |
Nut, Hex M12 (Zn)
|
CA$3.33
|
|
|
900-673 |
| 29 |
900-690 |
Nylon Insert Lock Nut, Hex M12 (Zn)
|
CA$3.33
|
|
|
900-690 |
| 30 |
900-659 |
Flat Washer 35x12x2mm (Zn)
|
CA$3.33
|
|
|
900-659 |
| 31 |
900-672 |
Regulating Spring
|
CA$3.33
|
|
|
900-672 |
| 32 |
102-881 |
Track
|
CA$174.81
|
|
|
102-881 |
| 33 |
102-883 |
8" Track Wheel (Front)
|
CA$18.89
|
|
|
102-883 |
| 34 |
102-892 |
Bushing, Front Axle
|
CA$4.50
|
|
|
102-892 |
| 35 |
102-886 |
Plate Bracket
|
CA$7.41
|
|
|
102-886 |
| 36 |
900-719 |
Shoulder Bolt, Hex M8x14 (Zn)
|
CA$3.33
|
|
|
900-719 |
| 37 |
102-885 |
Axle Sleeve
|
CA$4.50
|
|
|
102-885 |
| 38 |
102-890 |
Rear Chainwheel Welding Sets
|
CA$12.39
|
|
|
102-890 |
| 40 |
102-887 |
Axle Bracket, Rear Wheel
|
CA$17.50
|
|
|
102-887 |
| 41 |
102-889 |
Front Axle, Track Wheel
|
CA$16.09
|
|
|
102-889 |
| 42 |
102-888 |
Hook
|
CA$4.50
|
|
|
102-888 |
| 43, 45, 97 |
900-140 |
Bolt, Flange M8x12 (Zn)
|
CA$2.15
|
|
|
900-140 |
| 44 |
102-926 |
Supporting Rod , Rear Wheel Bracket
|
CA$4.50
|
|
|
102-926 |
| 46 |
102-819 |
Wire Holder
|
CA$4.50
|
|
|
102-819 |
| 47 |
102-891 |
Rear Cover, Motor Box
|
CA$11.60
|
|
|
102-891 |
| 48 |
900-677 |
Bolt, Hex M6x16 (Zn)
|
CA$3.33
|
|
|
900-677 |
| 49 |
900-895 |
Spring Washer 6mm (Zn)
|
CA$3.33
|
|
|
900-895 |
| 50 |
900-667 |
Flat Washer 23x6x3mm (Zn)
|
CA$3.33
|
|
|
900-667 |
| 51 |
102-799 |
Bearing 6001RS (with snap ring)
|
CA$10.79
|
|
|
102-799 |
| 52 |
102-810 |
Flat key 5x5x22mm
|
CA$3.33
|
|
|
102-810 |
| 53 |
102-893 |
Chain Wheel
|
CA$28.57
|
|
|
102-893 |
| 54 |
900-661 |
Flat Washer 28x15x1.5mm (Zn)
|
CA$3.33
|
|
|
900-661 |
| 55, 68 |
102-806 |
28-teeth Chain
|
CA$17.50
|
|
|
102-806 |
| 56 |
102-807 |
38-teeth Chain
|
CA$13.17
|
|
|
102-807 |
| 57 |
900-059 |
Nut, Hex M8 (Zn)
|
CA$2.07
|
|
|
900-059 |
| 58 |
102-894 |
Gear Frame
|
CA$36.86
|
|
|
102-894 |
| 59 |
102-895 |
Torrington Needle Bearing
|
CA$5.49
|
|
|
102-895 |
| 60 |
102-897 |
Sun Gear
|
CA$7.41
|
|
|
102-897 |
| 61 |
102-896 |
Planetary Gear
|
CA$6.47
|
|
|
102-896 |
| 62 |
102-898 |
Inner Gear
|
CA$33.36
|
|
|
102-898 |
| 63 |
102-899 |
Torrington Needle Bearing
|
CA$6.47
|
|
|
102-899 |
| 64 |
102-900 |
Differential Shaft
|
CA$20.27
|
|
|
102-900 |
| 65 |
102-937 |
Woodruff key 3x3.7x9.5mm
|
CA$3.33
|
|
|
102-937 |
| 66 |
900-264 |
Circlip 14mm (Zn)
|
CA$2.61
|
|
|
900-264 |
| 67 |
900-712 |
Circlip 16mm
|
CA$3.33
|
|
|
900-712 |
| 69 |
900-664 |
Flat Washer 12x6x1.1mm (Zn)
|
CA$3.48
|
|
|
900-664 |
| 70 |
900-133 |
Bolt, Hex M6x12 (Zn)
|
CA$3.33
|
|
|
900-133 |
| 71 |
102-922 |
Motor Box Cover (Bottom)
|
CA$14.63
|
|
|
102-922 |
| 72 |
900-680 |
Bolt, Hex M6x30 (Zn)
|
CA$3.33
|
|
|
900-680 |
| 73 |
900-025 |
Nut, Serrated Flange M6 (Zn)
|
CA$1.99
|
|
|
900-025 |
| 74 |
102-923 |
Motor Box Shroud (Light Grey)
|
CA$101.15
|
|
|
102-923 |
| 76 |
102-912 |
Mounting Bracket, Track Wheel
|
CA$6.47
|
|
|
102-912 |
| 77 |
102-830 |
Shifting Fork
|
CA$9.97
|
|
|
102-830 |
| 78 |
102-911 |
Mounting Bracket, Shiftng Fork
|
CA$4.50
|
|
|
102-911 |
| 79 |
900-083 |
Bolt, Flange M8x16 (Zn)
|
CA$2.18
|
|
|
900-083 |
| 80 |
900-669 |
Flat Washer 28x8x2mm (Zn)
|
CA$3.48
|
|
|
900-669 |
| 81 |
103-029 |
Bearing 6203RS (with snap ring)
|
CA$13.17
|
|
|
103-029 |
| 83 |
102-920 |
Chain Wheel
|
CA$11.60
|
|
|
102-920 |
| 84 |
102-913 |
Hex Shaft, Friction Gear
|
CA$13.17
|
|
|
102-913 |
| 85 |
102-943 |
Friction Gear Assembly
|
CA$68.81
|
|
|
102-943 |
| 86 |
102-930 |
46" Drive Cable
|
CA$21.58
|
|
|
102-930 |
| 87 |
900-727 |
Split Pin 3x25mm
|
CA$3.33
|
|
|
900-727 |
| 88 |
900-660 |
Flat Washer 24x13x2mm (Zn)
|
CA$3.33
|
|
|
900-660 |
| 89 |
102-854 |
Bushing
|
CA$4.50
|
|
|
102-854 |
| 90 |
900-705 |
Back Spring, Driven Pulley
|
CA$3.33
|
|
|
900-705 |
| 91 |
102-802 |
Rivet 4x35mm
|
CA$3.33
|
|
|
102-802 |
| 92 |
102-884 |
8" Track Wheel (Rear)
|
CA$18.89
|
|
|
102-884 |
| 93 |
102-944 |
Driven Pulley Assembly, Drive Belt
|
CA$51.16
|
|
|
102-944 |
| 94 |
900-684 |
Bolt with spring washer, Hex M6x12 (Zn)
|
CA$3.33
|
|
|
900-684 |
| 95 |
102-871 |
Bushing 19x32.5mm (BLK)
|
CA$3.33
|
|
|
102-871 |
| 96 |
102-870 |
Bushing 19x7.5mm (BLK)
|
CA$3.33
|
|
|
102-870 |
| 98 |
102-919 |
Gear-Engaging Plate
|
CA$10.79
|
|
|
102-919 |
| 99 |
102-902 |
Spacer Bushing 16.5x55mm
|
CA$5.49
|
|
|
102-902 |
| 100 |
102-903 |
Pawl
|
CA$7.41
|
|
|
102-903 |
| 101 |
102-904 |
Pawl Coupling Bracket
|
CA$6.47
|
|
|
102-904 |
| 102 |
102-831 |
40.25" Clutch/Steering Cable
|
CA$21.58
|
|
|
102-831 |
| 105 |
102-924 |
Spacer Bushing 16x57mm
|
CA$7.41
|
|
|
102-924 |
| 106 |
102-925 |
Clutch Claw Shaft
|
CA$20.27
|
|
|
102-925 |
| 107 |
900-715 |
Spring, Claw
|
CA$3.33
|
|
|
900-715 |
| 108 |
900-662 |
Flat Washer 30x16x1.5mm (Zn)
|
CA$3.33
|
|
|
900-662 |
