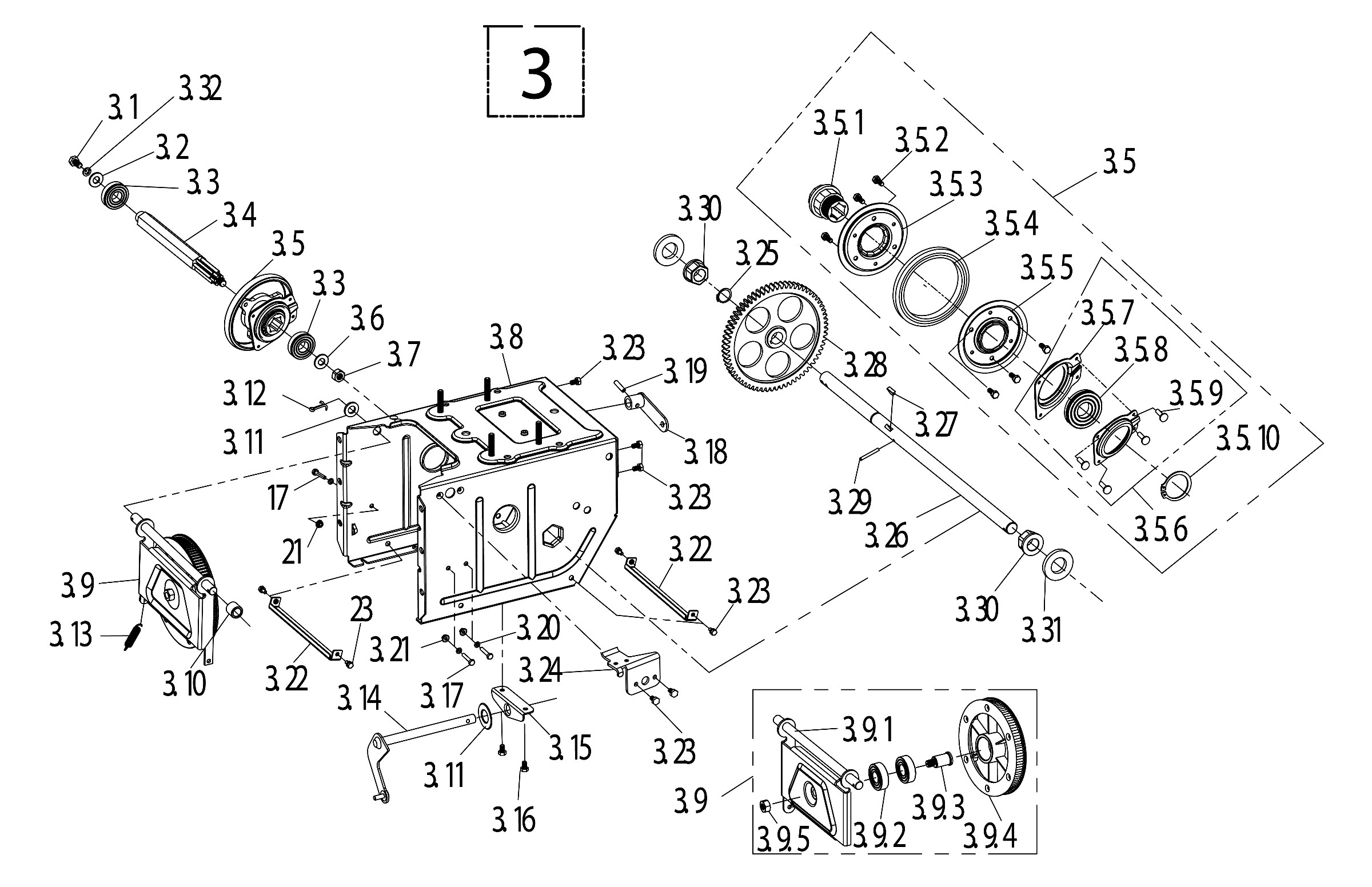

Motor Box Assembly

Grouped product items
No. Item No. Product Name Price Qty
3.1 900-815 Bolt, Hex M8x16 (Zn)
CA$3.33
900-815
3.2 900-669 Flat Washer 28x8x2mm (Zn)
CA$3.48
900-669
3.3 103-029 Bearing 6203RS (with snap ring)
CA$13.17
103-029
3.4 103-293 Shaft, Friction Gear Assembly
CA$13.98
103-293
3.5 102-943 Friction Gear Assembly
CA$68.81
102-943
3.5.1 103-298 Friction Gear
CA$14.42
103-298
3.5.2/3.16 900-684 Bolt with spring washer, Hex M6x12 (Zn)
CA$3.33
900-684
3.5.3 103-295 Friction Bearing Cap (top)
CA$6.64
103-295
3.5.4 103-283 Rubber Seal, Friction Disc
CA$19.46
103-283
3.5.5 103-296 Friction Bearing Cap (bottom)
CA$6.64
103-296
3.5.6 103-307 Bearing Cap Assemby, Friction Gear
CA$13.17
103-307
3.5.7 103-031 Bearing Cap, Friction Gear
CA$4.50
103-031
3.5.8 103-210 Bearing 6007RS
CA$8.26
103-210
3.5.9 103-225 Rivet 3x6mm
CA$3.33
103-225
3.5.10 900-745 Circlip 35mm
CA$3.33
900-745
3.6 900-658 Flat Washer 28x10x2mm (Zn)
CA$3.33
900-658
3.7 900-276 Nylon Insert Lock Nut, Hex M10x1.5 (Zn)
CA$2.25
900-276
3.8 103-314 Motor Box Shroud (Light Grey)
CA$70.58
103-314
3.9 102-944 Driven Pulley Assembly, Drive Belt
CA$51.16
102-944
3.9.1 102-940 Mounting Bracket, Driven Pulley
CA$9.97
102-940
5.9.2 103-103 Bearing 3203-2RS
CA$13.17
103-103
3.9.3 102-859 Shaft, Driven Pulley
CA$11.60
102-859
3.9.4 103-310 Driven Pulley (with Cap)
CA$33.64
103-310
3.9.5 900-826 Nylon Insert Lock Nut, Hex M10x1.25 (Zn)
CA$3.33
900-826
3.10 102-854 Bushing
CA$4.50
102-854
3.11 900-660 Flat Washer 24x13x2mm (Zn)
CA$3.33
900-660
3.12 900-731 Split Pin 2.5x30mm
CA$3.33
900-731
3.13 900-705 Back Spring, Driven Pulley
CA$3.33
900-705
3.14 103-301 Shifting Fork
CA$7.74
103-301
3.15 103-156 Mounting Bracket, Shifting Fork
CA$3.55
103-156
3.17 900-789 Bolt, Hex M6x35(Zn)
CA$3.33
900-789
3.18 102-868 Shifting Fork Arm (2022 version)
CA$5.49
102-868
3.19 900-670 Spring Pin 6×30mm (BLK)
CA$3.33
900-670
3.20 900-075 Flat Washer 12x6x1.5 mm (Zn)
CA$1.99
900-075
3.21 900-025 Nut, Serrated Flange M6 (Zn)
CA$1.99
900-025
3.22 103-312 Bracket, Motor Box
CA$4.24
103-312
3.23 900-787 Bolt with flat washer, Hex M6X12 (Zn)
CA$3.33
900-787
3.24 103-302 Cable Mounting Bracket
CA$4.88
103-302
3.25 900-817 Circlip 19 mm
CA$2.78
900-817
3.26 103-305 Driving Shaft
CA$14.42
103-305
3.27 102-938 Woodruff key 5x7.5x19mm
CA$3.33
102-938
3.28 103-299 Gear
CA$40.46
103-299
3.29 900-771 Spring Pin 4x30mm
CA$3.33
900-771
3.30 103-304 Sleeve, Driving Shaft
CA$3.55
103-304
