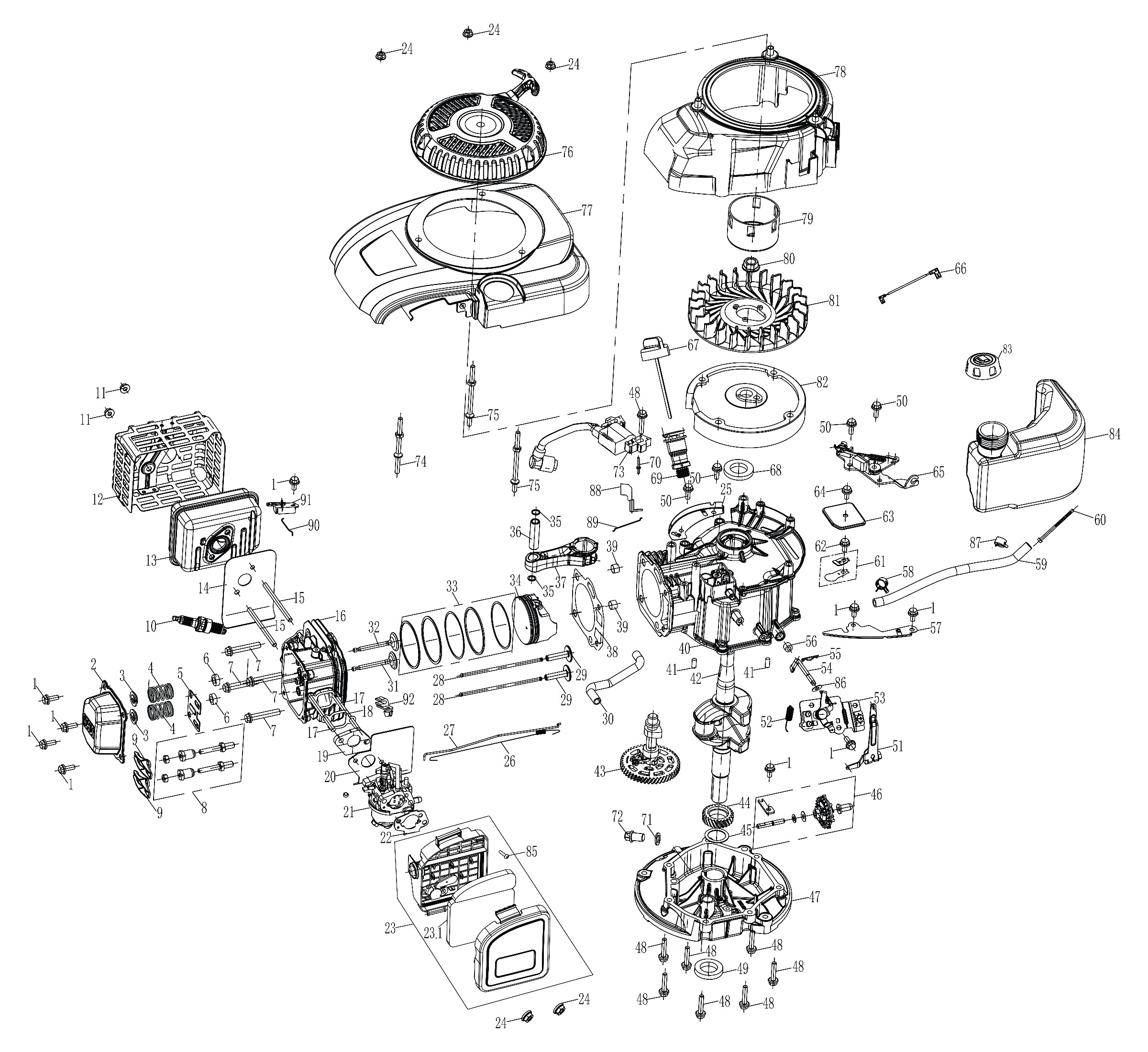

Engine

Grouped product items
No. Item No. Product Name Price Qty
1, 64 900-001 Bolt, Flange M6x12 (Zn)
CA$2.08
900-001
2 103-496 Cylinder Head Cover
CA$5.19
103-496
3 101-507 Valve Spring Seat
CA$3.89
101-507
4 900-151 Valve Spring
CA$2.61
900-151
5 103-497 Push Rod Guider
CA$2.95
103-497
6 101-464 Valve Oil Seal
CA$3.89
101-464
7 900-082 Bolt, Flange M8x45 (Zn)
CA$2.57
900-082
8 900-105 Bolt and Nut Set, Valve Rocker
CA$4.19
900-105
9 101-753 Valve Rocker
CA$2.95
101-753
10 101-692 Spark Plug (F7RTC)
CA$18.32
101-692
11 900-088 Lock Nut, Flange M6 (Zn)
CA$2.07
900-088
12 103-498 Muffler Housing (2023 version)
CA$10.84
103-498
13 102-466 Muffler
CA$14.33
102-466
14 105-771 Exhaust Gasket
CA$5.03
105-771
15 900-106 Stud Bolt M6x93
CA$2.87
900-106
16 103-500 Cylinder Head (170F)
CA$26.42
103-500
17 900-222 Stud Bolt M6x91
CA$2.87
900-222
18 103-501 Inlet Gasket
CA$2.15
103-501
19 103-502 Carburetor Connecting Block
CA$2.78
103-502
20 103-503 Carburetor Gasket
CA$4.24
103-503
21 105-745 Carburetor (2025 version)
CA$26.14
105-745
22 101-761 Air Filter Gasket
CA$2.18
101-761
23 105-746 Air Filter Assembly (2025 version)
CA$8.67
105-746
23.1 103-538 2-piece Air Filter (foam)
CA$5.86
103-538
24 900-158 Nut, non-serrated Flange M6 (Zn)
CA$1.99
900-158
25 105-772 Wind Cover
CA$2.76
105-772
26 900-331 Fine Regulating Spring
CA$2.25
900-331
27 103-506 Pulling Rod
CA$2.44
103-506
28 103-507 Push Rod
CA$3.11
103-507
29 102-557 Valve Lifter
CA$3.69
102-557
30 103-508 Breath Hose
CA$3.19
103-508
31 103-509 Intake Valve
CA$6.53
103-509
32 103-510 Exhaust Valve
CA$6.53
103-510
33 101-457 Piston Ring Set (170F)
CA$9.02
101-457
34 103-511 Piston (170F, H39.6mm)
CA$13.25
103-511
35 900-160 Piston Pin Clip 13mm
CA$1.99
900-160
36 101-768 Piston Pin 13x47mm
CA$3.84
101-768
37 103-512 Connecting Rod Assembly
CA$10.65
103-512
38 103-513 Cylinder Head Gasket
CA$5.27
103-513
39 900-109 Dowel Pin 10x14mm
CA$2.04
900-109
40 105-747 Crankcase (2025 version)
CA$41.34
105-747
41 900-329 Dowel Pin 8x14mm
CA$2.04
900-329
42 103-515 Crankshaft
CA$25.43
103-515
43 103-516 Camshaft Assembly
CA$14.27
103-516
44 103-517 Crankshaft Timing Drive Gear
CA$4.94
103-517
45 102-462 O-Ring Spacer 34x25x0.95mm, Crankshaft
CA$2.54
102-462
46 102-546 Governor Assembly
CA$6.59
102-546
47 103-518 Crankcase Cover
CA$23.75
103-518
48 900-820 Bolt, Flange M6x30 (Zn)
CA$2.15
900-820
49 102-542 Oil Seal 40x25xH7mm (with oil return groove line)
CA$3.89
102-542
50 900-085 Bolt, Flange M6x16 (Zn)
CA$2.07
900-085
51 105-748 Regulating Arm (2025 version)
CA$4.11
105-748
52 900-871 Back Spring
CA$2.18
900-871
53 103-520 Regulating Mount
CA$2.70
103-520
54 103-521 Governor Arm Shaft
CA$3.19
103-521
55 101-262 Cotter Pin
CA$1.99
101-262
56 101-544 Governor Arm Shaft Seal 11x6xH4mm
CA$3.16
101-544
57 103-522 Air Deflector
CA$4.17
103-522
58 900-036 Hose Clamp 10mm
CA$2.51
900-036
59 105-749 Fuel Hose (2025 version)
CA$8.52
105-749
60 101-801 Cylindrical Fuel Filter
CA$2.80
101-801
61 103-524 Breather Plate
CA$3.33
103-524
62 900-201 Bolt, Flange M6x8 (Zn)
CA$2.04
900-201
63 103-525 Oil Chamber Backflow Plate
CA$3.25
103-525
65 105-773 Brake Assembly
CA$16.43
105-773
66 105-774 Ignition Wire
CA$3.94
105-774
67 105-775 Engine Oil Dipstick (Stainless)
CA$4.82
105-775
68 101-452 Oil Seal 41.25x25xH6mm
CA$5.53
101-452
69 103-452 Dipstick Tube
CA$3.41
103-452
70 103-536 Throttle
CA$2.95
103-536
71 900-100 Flat Washer 15x10x1.5mm (Zn)
CA$2.04
900-100
72 900-101 Drain Bolt, Flange M10x1.25x15 (Zn)
CA$2.61
900-101
73 104-594 Ignition Coil
CA$13.91
104-594
74 900-813 Stud Bolt, Ignition Coil M6x90
CA$3.33
900-813
75 900-872 Stud Bolt, Fan Cover M6X104
CA$3.33
900-872
76 105-776 Recoil Starter
CA$16.02
105-776
77 105-777 Fan Cover, Outer
CA$10.45
105-777
78 105-778 Fan Cover, Inner
CA$9.46
105-778
79 101-804 Starting Flange
CA$5.07
101-804
80 900-110 Nut, Serrated Flange M14 (Zn)
CA$3.76
900-110
81 102-488 Flywheel Fan (Plastic)
CA$4.56
102-488
82 105-779 Flywheel
CA$20.64
105-779
83 101-794 Fuel Cap
CA$14.95
101-794
84 103-532 Fuel Tank
CA$17.13
103-532
85 900-865 Self-tapping Screw, Phillips Wafer Head M4.2x16 (BLK)
CA$2.18
900-865
86 900-112 Flat Washer 13x6x0.95mm (BLK)
CA$2.04
900-112
87 900-297 Hose Clamp 10.5mm
CA$2.44
900-297
88 103-533 Blade Rotor
CA$3.61
103-533
89 103-534 Pulling Rod, Blade Rotor
CA$2.25
103-534
90 103-535 Temperature Control Lever
CA$2.25
103-535
91 102-581 Temperature Control Switch (200cc lawn mower)
CA$14.24
102-581
92 900-873 Lock Clip
CA$2.78
900-873
105-750 Carburetor Jet Kit (2000-3000ft, 3000-6000ft, 6000-7000ft)
CA$7.59
105-750
