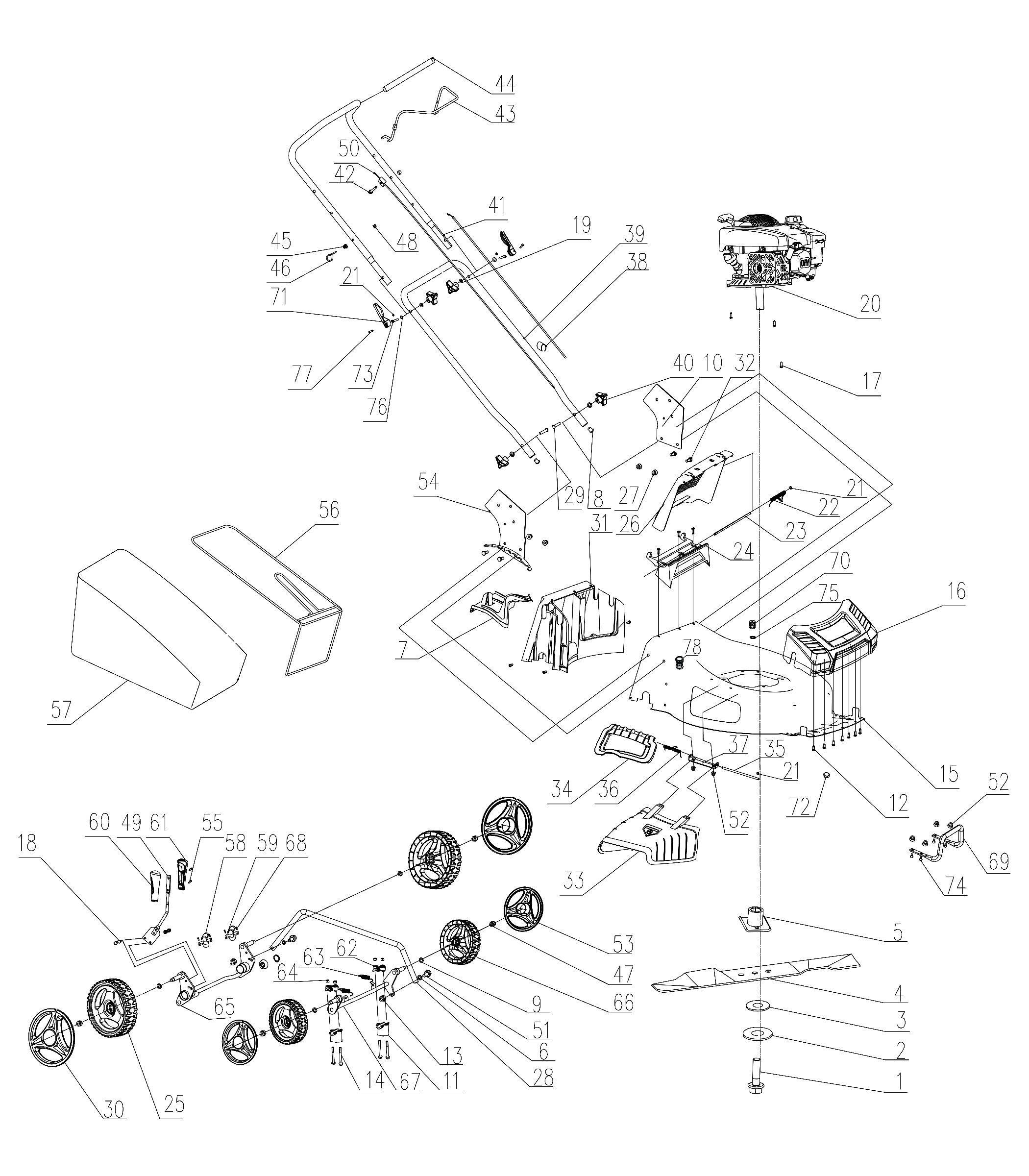

| 1 |
900-271 |
Blade Bolt, Hex M9x40 (BLK)
|
CA$3.16
|
|
|
900-271 |
| 2 |
900-272 |
Curved Washer 45x11mm (BLK)
|
CA$3.07
|
|
|
900-272 |
| 3 |
900-298 |
Blade Spacer 45x11mm (plastic)
|
CA$2.61
|
|
|
900-298 |
| 4 |
102-405 |
21" Blade
|
CA$16.30
|
|
|
102-405 |
| 5 |
102-406 |
Blade Holder
|
CA$9.75
|
|
|
102-406 |
| 6 |
900-768 |
Flat Washer 16x8x2mm (Zn)
|
CA$1.99
|
|
|
900-768 |
| 7 |
102-420 |
Mulch Plug
|
CA$8.91
|
|
|
102-420 |
| 8 |
102-419 |
Plug, Lower Handle
|
CA$2.35
|
|
|
102-419 |
| 9 |
900-274 |
Wave Washer 20x13x0.5mm (BLK)
|
CA$1.99
|
|
|
900-274 |
| 10 |
102-422 |
Left Handlebar Bracket
|
CA$11.45
|
|
|
102-422 |
| 11 |
102-438 |
Front Wheel Axle Retainer (Bottom)
|
CA$2.87
|
|
|
102-438 |
| 12 |
900-277 |
Self-tapping Screw, Phillips Pan Head M5.0x12 (BLK)
|
CA$1.99
|
|
|
900-277 |
| 13 |
900-147 |
Nylon Insert Lock Nut, Hex M6 (Zn)
|
CA$2.18
|
|
|
900-147 |
| 14 |
900-224 |
23mm-thread Bolt, Flange M6x50 (Zn)
|
CA$2.18
|
|
|
900-224 |
| 15 |
104-521 |
22" Mower Deck (HM1730)
|
CA$56.91
|
|
|
104-521 |
| 16 |
102-412 |
Hood
|
CA$12.12
|
|
|
102-412 |
| 17 |
900-278 |
Bolt, Flange M9.4X26 (BLK)
|
CA$3.16
|
|
|
900-278 |
| 18 |
900-284 |
Bolt, Hex M6x14 (Zn)
|
CA$2.07
|
|
|
900-284 |
| 19 |
900-313 |
Flat Washer 24x8x2mm (Zn)
|
CA$2.07
|
|
|
900-313 |
| 20 |
104-522 |
Complete Engine Assembly (173cc)
|
CA$188.84
|
|
|
104-522 |
| 21 |
901-119 |
E-Clip 5mm
|
CA$2.30
|
|
|
901-119 |
| 22 |
900-281 |
Torsion Spring, Rear Cover
|
CA$3.58
|
|
|
900-281 |
| 23 |
102-415 |
Rear Cover Shaft
|
CA$4.56
|
|
|
102-415 |
| 24 |
103-406 |
Base Block, Rear Cover
|
CA$4.30
|
|
|
103-406 |
| 25 |
102-430 |
10" Wheel (Rear)
|
CA$12.66
|
|
|
102-430 |
| 26 |
102-417 |
Rear Cover
|
CA$10.84
|
|
|
102-417 |
| 27 |
900-283 |
Nylon Insert Lock Nut, Flange M8 (Zn)
|
CA$2.18
|
|
|
900-283 |
| 28 |
102-439 |
Height Adjusting Connecting Bar
|
CA$13.74
|
|
|
102-439 |
| 29 |
900-287 |
Locking Bolt, Wave Head M8x45 (Zn)
|
CA$2.61
|
|
|
900-287 |
| 30 |
104-445 |
Wheel Cover (rear)
|
CA$5.12
|
|
|
104-445 |
| 31 |
102-421 |
Rear Air Duct
|
CA$16.78
|
|
|
102-421 |
| 32 |
900-317 |
Carriage Bolt M8x20 (BLK)
|
CA$2.25
|
|
|
900-317 |
| 33 |
102-443 |
Side Discharge Chute
|
CA$9.31
|
|
|
102-443 |
| 34 |
102-442 |
Side Cover
|
CA$15.87
|
|
|
102-442 |
| 35 |
102-445 |
Shaft, Side Cover
|
CA$3.73
|
|
|
102-445 |
| 36 |
900-293 |
Torsion Spring, Side Cover
|
CA$3.41
|
|
|
900-293 |
| 37 |
102-444 |
Side Cover Bracket Assembly
|
CA$4.76
|
|
|
102-444 |
| 38 |
900-273 |
Wire Clip (C Shape)
|
CA$2.70
|
|
|
900-273 |
| 39 |
104-447 |
Handle (Lower)
|
CA$15.07
|
|
|
104-447 |
| 40 |
103-412 |
Triangle Handle Knob (BLK)
|
CA$2.61
|
|
|
103-412 |
| 41 |
104-374 |
Handle (Upper)
|
CA$17.39
|
|
|
104-374 |
| 42 |
900-279 |
Bolt, Phillips Curved Head M6x33 (Zn)
|
CA$2.18
|
|
|
900-279 |
| 43 |
104-442 |
Power Lever
|
CA$10.31
|
|
|
104-442 |
| 44 |
102-429 |
Handle Sleeve (foam)
|
CA$5.01
|
|
|
102-429 |
| 45 |
900-025 |
Nut, Serrated Flange M6 (Zn)
|
CA$1.99
|
|
|
900-025 |
| 46 |
102-426 |
Cable Hook
|
CA$3.16
|
|
|
102-426 |
| 47 |
900-276 |
Nylon Insert Lock Nut, Hex M10x1.5 (Zn)
|
CA$2.25
|
|
|
900-276 |
| 48 |
900-289 |
Cap Nut, Hex M6/H12mm (Zn)
|
CA$2.04
|
|
|
900-289 |
| 49 |
102-441 |
Rod, Cutting Height Adjusting Handle
|
CA$7.32
|
|
|
102-441 |
| 50 |
102-433 |
Brake Cable
|
CA$8.79
|
|
|
102-433 |
| 51 |
900-808 |
Shoulder Bolt, Hex M6x18 (Zn)
|
CA$2.61
|
|
|
900-808 |
| 52 |
900-275 |
Nylon Insert Lock Nut, Flange M6 (Zn)
|
CA$2.07
|
|
|
900-275 |
| 53 |
104-444 |
Wheel Cover (front)
|
CA$3.84
|
|
|
104-444 |
| 54 |
102-436 |
Right Handlebar Bracket
|
CA$14.37
|
|
|
102-436 |
| 55 |
900-282 |
Self-tapping Screw, Phillips Wafer Head M4.2x9.5 (Zn)
|
CA$1.99
|
|
|
900-282 |
| 56 |
102-219 |
Grass Catcher Bag Frame
|
CA$14.99
|
|
|
102-219 |
| 57 |
104-449 |
Grass Catcher Bag (Hyundai)
|
CA$22.07
|
|
|
104-449 |
| 58 |
102-407 |
Rear Axle Block (Top)
|
CA$3.03
|
|
|
102-407 |
| 59 |
102-408 |
Rear Axle Block (Bottom)
|
CA$2.70
|
|
|
102-408 |
| 60 |
104-446 |
Cutting Height Adjusting Lever (right)
|
CA$3.41
|
|
|
104-446 |
| 61 |
104-443 |
Cutting Height Adjusting Lever (left)
|
CA$3.41
|
|
|
104-443 |
| 62 |
102-423 |
Front Wheel Axle Retainer (Top)
|
CA$2.87
|
|
|
102-423 |
| 63 |
900-285 |
Height Extension Spring
|
CA$2.61
|
|
|
900-285 |
| 64 |
900-195 |
Nut, Hex M6 (Zn)
|
CA$1.99
|
|
|
900-195 |
| 65 |
102-424 |
Wheel Axle (Rear)
|
CA$16.28
|
|
|
102-424 |
| 66 |
102-440 |
7" Wheel
|
CA$12.12
|
|
|
102-440 |
| 67 |
102-437 |
Wheel Axle (Front )
|
CA$15.59
|
|
|
102-437 |
| 68 |
900-292 |
Self-tapping Screw, Phillips Pan Head M6.3x16 (Zn)
|
CA$1.99
|
|
|
900-292 |
| 69 |
103-403 |
Bumper
|
CA$7.84
|
|
|
103-403 |
| 70 |
102-517 |
Sewer Cleaning Nozzle
|
CA$3.84
|
|
|
102-517 |
| 71 |
103-410 |
Locking Lever
|
CA$5.53
|
|
|
103-410 |
| 72 |
900-110 |
Nut, Serrated Flange M14 (Zn)
|
CA$3.76
|
|
|
900-110 |
| 73 |
900-321 |
Locking Bolt M8x68
|
CA$2.70
|
|
|
900-321 |
| 74 |
900-772 |
Carriage Bolt M6x14 (Zn)
|
CA$2.04
|
|
|
900-772 |
| 75 |
900-322 |
O-Ring 11.2x2.65mm
|
CA$2.04
|
|
|
900-322 |
| 76 |
900-669 |
Flat Washer 28x8x2mm (Zn)
|
CA$3.48
|
|
|
900-669 |
| 77 |
103-409 |
Locking Pin Shaft
|
CA$2.89
|
|
|
103-409 |
| 78 |
103-621 |
Deck Wash Connector (hose adapter)
|
CA$5.12
|
|
|
103-621 |
