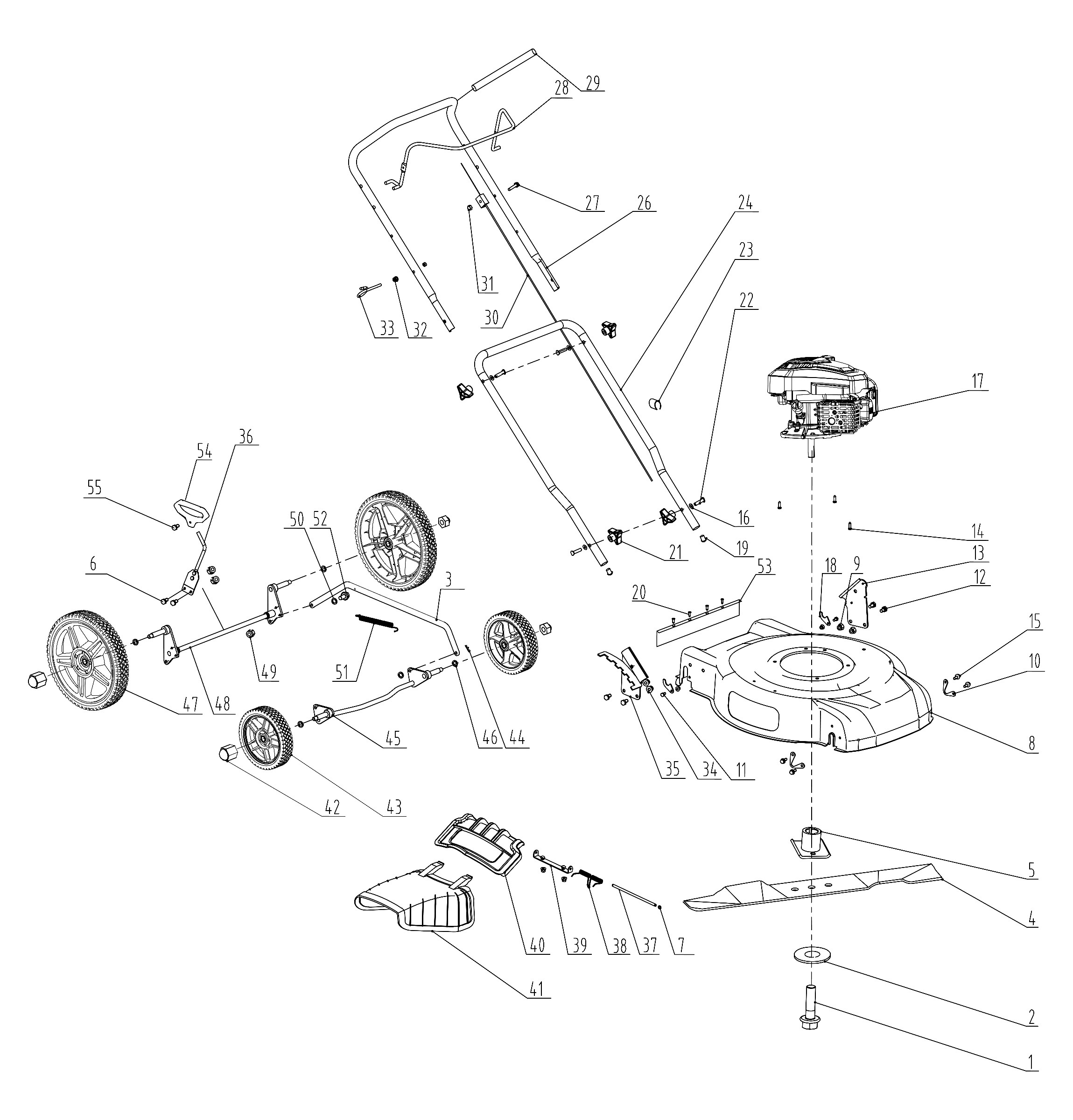

| 1 |
900-271 |
Blade Bolt, Hex M9x40 (BLK)
|
CA$3.16
|
|
|
900-271 |
| 2 |
900-272 |
Curved Washer 45x11mm (BLK)
|
CA$3.07
|
|
|
900-272 |
| 3 |
103-763 |
Height Adjusting Connecting Bar
|
CA$11.18
|
|
|
103-763 |
| 4 |
103-720 |
20" Blade
|
CA$15.43
|
|
|
103-720 |
| 5 |
102-406 |
Blade Holder
|
CA$9.75
|
|
|
102-406 |
| 6 |
900-284 |
Bolt, Hex M6x14 (Zn)
|
CA$2.07
|
|
|
900-284 |
| 7 |
901-119 |
E-Clip 5mm
|
CA$2.30
|
|
|
901-119 |
| 8 |
104-454 |
21" Mower Deck (HM1710)
|
CA$52.18
|
|
|
104-454 |
| 9 |
900-275 |
Nylon Insert Lock Nut, Flange M6 (Zn)
|
CA$2.07
|
|
|
900-275 |
| 10 |
103-757 |
Mounting Plate, Front Axle
|
CA$2.78
|
|
|
103-757 |
| 11 |
900-085 |
Bolt, Flange M6x16 (Zn)
|
CA$2.07
|
|
|
900-085 |
| 12 |
900-815 |
Bolt, Hex M8x16 (Zn)
|
CA$3.33
|
|
|
900-815 |
| 13 |
103-758 |
Left Handlebar Bracket
|
CA$8.97
|
|
|
103-758 |
| 14 |
900-278 |
Bolt, Flange M9.4X26 (BLK)
|
CA$3.16
|
|
|
900-278 |
| 15 |
900-583 |
Bolt, Flange M6x12 (BLK)
|
CA$2.18
|
|
|
900-583 |
| 16 |
900-313 |
Flat Washer 24x8x2mm (Zn)
|
CA$2.07
|
|
|
900-313 |
| 17 |
104-455 |
Complete Engine Assembly (173cc)
|
CA$163.62
|
|
|
104-455 |
| 18 |
103-760 |
Mounting Plate, Rear Axle
|
CA$4.37
|
|
|
103-760 |
| 19 |
102-419 |
Plug, Lower Handle
|
CA$2.35
|
|
|
102-419 |
| 20 |
901-415 |
Rivet
|
CA$2.41
|
|
|
901-415 |
| 21 |
103-412 |
Triangle Handle Knob (BLK)
|
CA$2.61
|
|
|
103-412 |
| 22 |
900-287 |
Locking Bolt, Wave Head M8x45 (Zn)
|
CA$2.61
|
|
|
900-287 |
| 23 |
900-273 |
Wire Clip (C Shape)
|
CA$2.70
|
|
|
900-273 |
| 24 |
104-456 |
Handle (Lower)
|
CA$16.39
|
|
|
104-456 |
| 26 |
103-804 |
Handle (Upper)
|
CA$14.68
|
|
|
103-804 |
| 27 |
900-279 |
Bolt, Phillips Curved Head M6x33 (Zn)
|
CA$2.18
|
|
|
900-279 |
| 28 |
104-442 |
Power Lever
|
CA$10.31
|
|
|
104-442 |
| 29 |
103-414 |
Motor Box Cover (Bottom, BLK)
|
CA$7.19
|
|
|
103-414 |
| 30 |
103-766 |
Brake Cable
|
CA$7.74
|
|
|
103-766 |
| 31 |
900-289 |
Cap Nut, Hex M6/H12mm (Zn)
|
CA$2.04
|
|
|
900-289 |
| 32 |
900-025 |
Nut, Serrated Flange M6 (Zn)
|
CA$1.99
|
|
|
900-025 |
| 33 |
102-426 |
Cable Hook
|
CA$3.16
|
|
|
102-426 |
| 34 |
900-283 |
Nylon Insert Lock Nut, Flange M8 (Zn)
|
CA$2.18
|
|
|
900-283 |
| 35 |
103-767 |
Right Handlebar Bracket
|
CA$10.17
|
|
|
103-767 |
| 36 |
104-457 |
Rod, Cutting Height Adjusting Handle
|
CA$7.62
|
|
|
104-457 |
| 37 |
102-445 |
Shaft, Side Cover
|
CA$3.73
|
|
|
102-445 |
| 38 |
900-293 |
Torsion Spring, Side Cover
|
CA$3.41
|
|
|
900-293 |
| 39 |
102-444 |
Side Cover Bracket Assembly
|
CA$4.76
|
|
|
102-444 |
| 40 |
103-769 |
Side Cover
|
CA$8.97
|
|
|
103-769 |
| 41 |
103-770 |
Side Discharge Chute
|
CA$8.39
|
|
|
103-770 |
| 42 |
901-233 |
Cap Nut M10
|
CA$2.61
|
|
|
901-233 |
| 43 |
104-458 |
7" Wheel (Front)
|
CA$13.14
|
|
|
104-458 |
| 44 |
101-262 |
Cotter Pin
|
CA$1.99
|
|
|
101-262 |
| 45 |
104-459 |
Wheel Axle (Front )
|
CA$15.42
|
|
|
104-459 |
| 46 |
900-274 |
Wave Washer 20x13x0.5mm (BLK)
|
CA$1.99
|
|
|
900-274 |
| 47 |
104-460 |
11" Wheel (Rear)
|
CA$17.72
|
|
|
104-460 |
| 48 |
104-461 |
Wheel Axle (Rear)
|
CA$15.85
|
|
|
104-461 |
| 49 |
900-147 |
Nylon Insert Lock Nut, Hex M6 (Zn)
|
CA$2.18
|
|
|
900-147 |
| 50 |
900-768 |
Flat Washer 16x8x2mm (Zn)
|
CA$1.99
|
|
|
900-768 |
| 51 |
900-921 |
Extension Spring
|
CA$3.61
|
|
|
900-921 |
| 52 |
900-808 |
Shoulder Bolt, Hex M6x18 (Zn)
|
CA$2.61
|
|
|
900-808 |
| 53 |
105-751 |
Trail Shield (2025 version)
|
CA$9.07
|
|
|
105-751 |
| 54 |
104-462 |
Cutting Height Adjusting Handle Grip
|
CA$3.48
|
|
|
104-462 |
| 55 |
900-328 |
Bolt, Phillips Pan Head M6x10 (Zn)
|
CA$1.99
|
|
|
900-328 |
