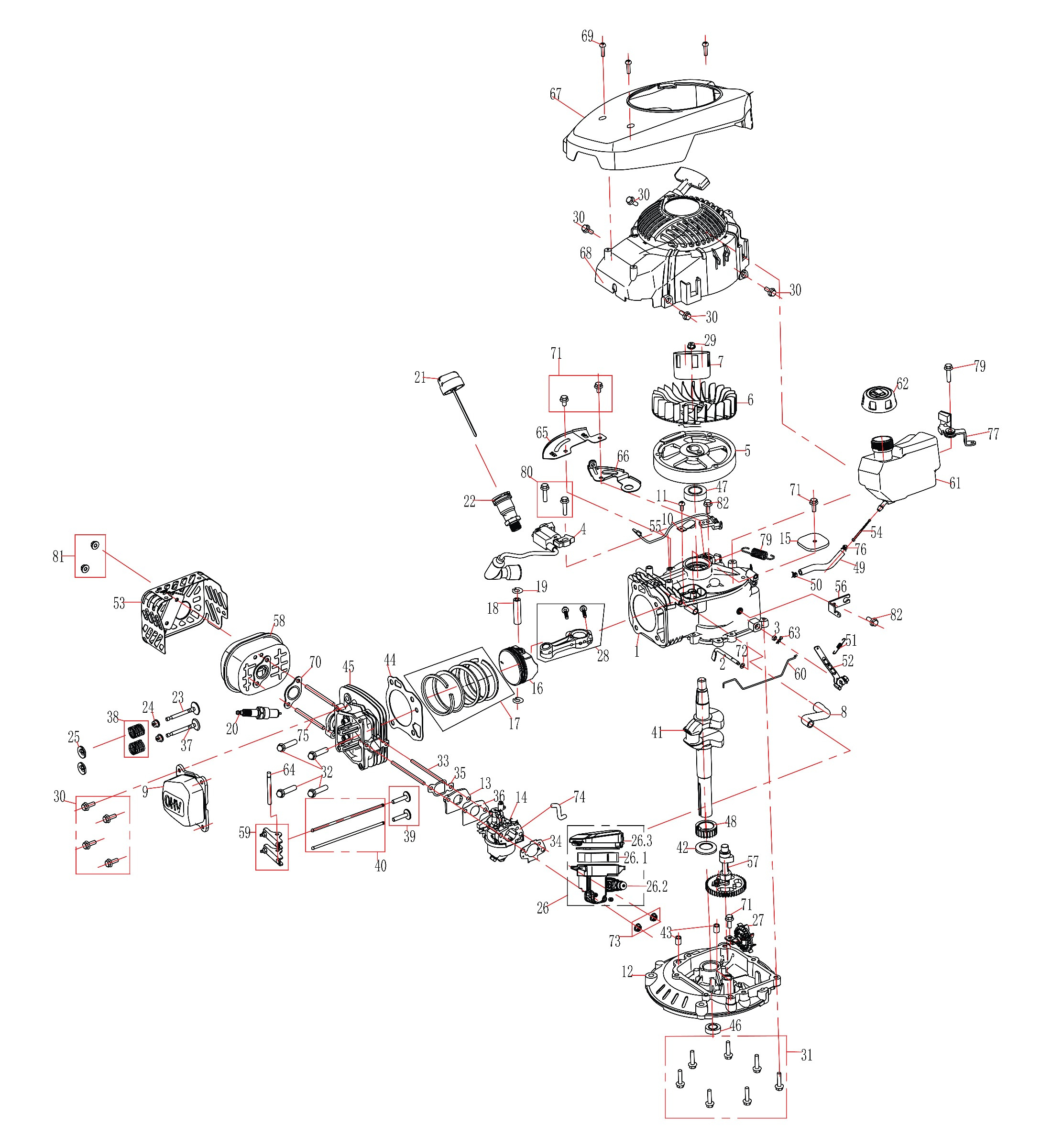

Engine

Grouped product items
No. Item No. Product Name Price Qty
1 104-380 Crankcase
CA$40.16
104-380
2 103-437 Governor Arm Shaft
CA$3.11
103-437
3 101-760 Governor Arm Shaft Seal 10x5xH4mm
CA$2.87
101-760
4 103-438 Ignition Coil
CA$15.69
103-438
5 104-381 Flywheel Assembly
CA$15.81
104-381
6 103-440 Flywheel Fan (Plastic)
CA$4.43
103-440
7 103-441 Starting Flange
CA$6.88
103-441
8 103-442 Breath Hose
CA$3.11
103-442
9 103-443 Cylinder Head Cover
CA$5.86
103-443
10 103-444 Breather Plate
CA$3.33
103-444
11 900-760 Bolt, Phillips Pan Head M4x6 (Zn)
CA$2.78
900-760
12 103-445 Crankcase Cover
CA$22.79
103-445
13 103-446 Carburetor Connecting Block
CA$2.80
103-446
15 103-448 Oil Chamber Backflow Plate
CA$3.25
103-448
16 104-383 Piston
CA$13.83
104-383
17 104-384 Piston Ring Set
CA$8.54
104-384
18 103-450 Piston Pin 12x46.5mm
CA$3.61
103-450
19 900-779 Piston Clip 13.6mm
CA$1.99
900-779
20 101-758 Spark Plug (F6TC)
CA$6.25
101-758
21 103-745 Engine Oil Dipstick (Stainless)
CA$4.50
103-745
22 103-452 Dipstick Tube
CA$3.41
103-452
23 101-105 Intake Valve
CA$6.31
101-105
24 101-464 Valve Oil Seal
CA$3.89
101-464
25 101-507 Valve Spring Seat
CA$3.89
101-507
26 105-753 Air Filter Assembly (with primer bulb, 2025 version)
CA$9.74
105-753
26.1 104-386 2-piece Air Filter (foam)
CA$3.06
104-386
26.2 102-497 Primer Bulb
CA$3.90
102-497
26.3 104-390 Top Cover, Air Filter Assembly
CA$6.70
104-390
27 103-454 Governor Assembly
CA$5.73
103-454
28 104-387 Connecting Rod Assembly
CA$9.18
104-387
29 900-208 Nut, Serrated Flange M12 (Zn)
CA$2.54
900-208
30 900-085 Bolt, Flange M6x16 (Zn)
CA$2.07
900-085
31 900-089 Bolt, Flange M6x25 (Zn)
CA$2.18
900-089
32 900-082 Bolt, Flange M8x45 (Zn)
CA$2.57
900-082
33 900-222 Stud Bolt M6x91
CA$2.87
900-222
34 101-761 Air Filter Gasket
CA$2.18
101-761
35 103-456 Inlet Gasket
CA$2.18
103-456
36 103-457 Carburetor Gasket
CA$2.18
103-457
37 101-110 Exhaust Valve
CA$6.31
101-110
38 900-056 Valve Spring
CA$2.70
900-056
39 103-458 Valve Lifter
CA$3.33
103-458
40 103-459 Push Rod
CA$3.55
103-459
41 104-388 Crankshaft
CA$23.39
104-388
42 102-462 O-Ring Spacer 34x25x0.95mm, Crankshaft
CA$2.54
102-462
43 900-055 Dowel Pin 8x12mm
CA$2.04
900-055
44 103-461 Cylinder Head Gasket
CA$4.76
103-461
45 103-462 Cylinder Head (170F)
CA$24.28
103-462
46 102-542 Oil Seal 40x25xH7mm (with oil return groove line)
CA$3.89
102-542
47 103-463 Oil Seal 41.3x22xH6mm (with oil return groove line)
CA$3.47
103-463
48 103-464 Crankshaft Timing Drive Gear
CA$4.30
103-464
49 104-389 Fuel Hose 6x10x96mm
CA$5.06
104-389
50 900-036 Hose Clamp 10mm
CA$2.51
900-036
51 901-235 Back Spring
CA$2.21
901-235
52 103-466 Regulating Arm
CA$4.24
103-466
53 101-786 Muffler Housing
CA$9.23
101-786
54 101-801 Cylindrical Fuel Filter
CA$2.80
101-801
55 103-468 Ignition Wire
CA$5.55
103-468
56 103-469 Regulating Mount
CA$3.25
103-469
57 103-470 Camshaft Assembly
CA$12.90
103-470
58 101-785 Muffler
CA$9.97
101-785
59 103-472 Valve Rocker
CA$4.56
103-472
60 103-473 Pulling Rod
CA$2.35
103-473
61 103-474 Fuel Tank
CA$15.57
103-474
62 101-794 Fuel Cap
CA$14.95
101-794
63 101-759 Cotter Pin
CA$1.99
101-759
64 103-475 Valve Rocker Pin
CA$3.11
103-475
65 103-476 Wind Cover (Top)
CA$3.76
103-476
66 103-477 Wind Cover
CA$3.97
103-477
67 104-452 Fan Cover, Outer
CA$8.31
104-452
68 104-463 Recoil Starter Assembly
CA$17.69
104-463
69 900-865 Self-tapping Screw, Phillips Wafer Head M4.2x16 (BLK)
CA$2.18
900-865
70 103-754 Exhaust Gasket
CA$2.41
103-754
71 900-730 Bolt, Flange M6x10 (Zn)
CA$2.04
900-730
72 900-866 Flat Washer 12x5x0.6mm (BLK)
CA$2.04
900-866
73 900-158 Nut, Serrated Flange M6 (Zn)
CA$1.99
900-158
74 103-755 Air Intake Hose (2023 version)
CA$2.41
103-755
75 900-152 Stud bolt M6x77
CA$2.70
900-152
76 900-297 Hose Clamp 10.5mm
CA$2.44
900-297
77 103-482 Brake Assemby
CA$9.32
103-482
78 900-867 Brake Spring
CA$2.61
900-867
79 900-868 Bolt, Flange M6x22 (Zn)
CA$2.18
900-868
80 900-820 Bolt, Flange M6x30 (Zn)
CA$2.15
900-820
81 900-088 Lock Nut, Flange M6 (Zn)
CA$2.07
900-088
82 900-001 Bolt, Flange M6x12 (Zn)
CA$2.08
900-001
104-517 Carburetor Jet Kit (2000-3000ft, 3000-6000ft, 6000-7000ft)
CA$8.07
104-517
