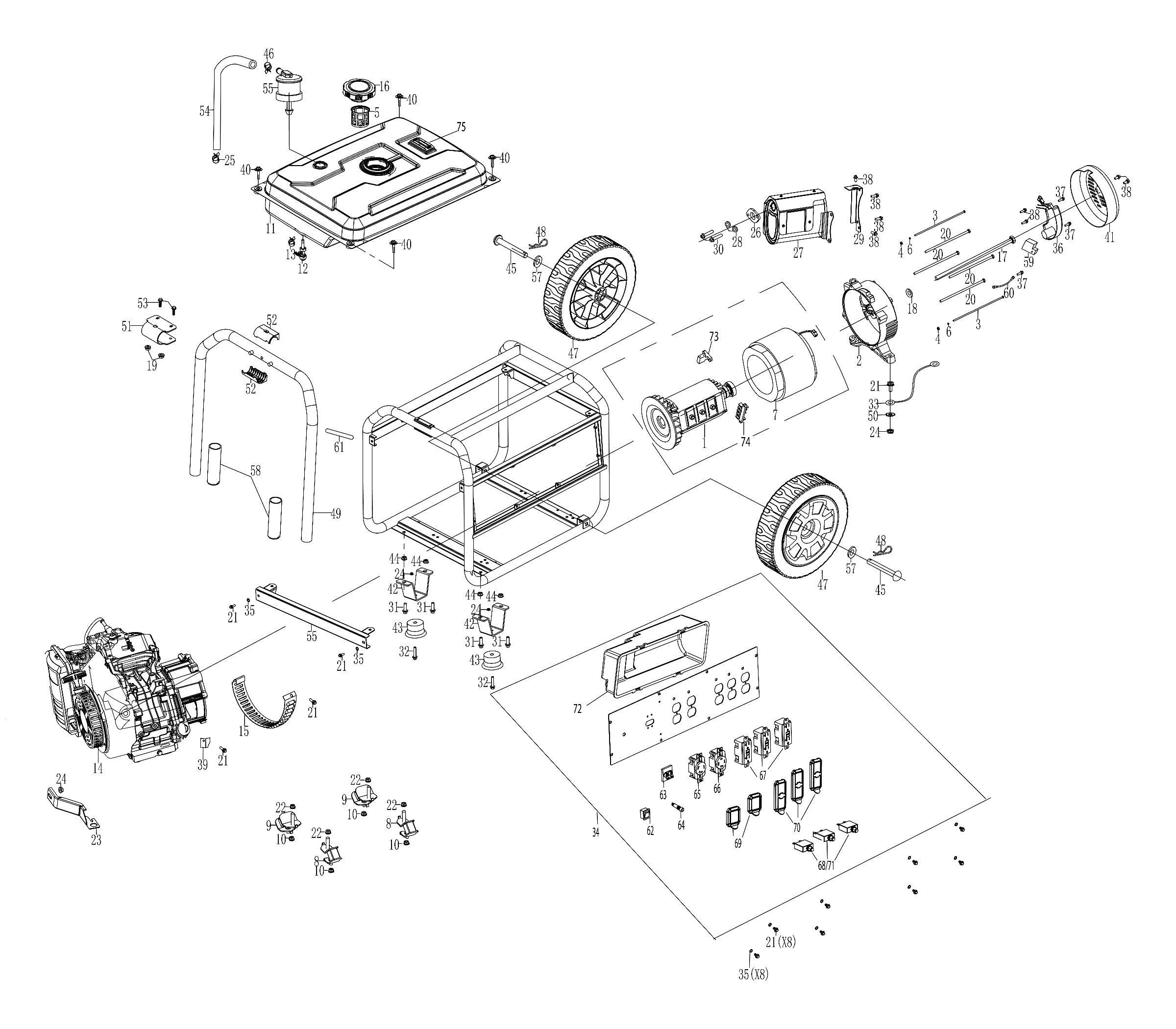

| 1 |
102-400 |
Rotor
|
CA$98.89
|
|
|
102-400 |
| 2 |
101-279 |
Motor Stand
|
CA$27.81
|
|
|
101-279 |
| 3 |
900-269 |
Stator Bolt, Flange M5x204 (BLK）
|
CA$3.97
|
|
|
900-269 |
| 4 |
900-033 |
Nut, Hex M5 (BLK)
|
CA$1.99
|
|
|
900-033 |
| 5 |
101-999 |
Fuel Strainer
|
CA$3.65
|
|
|
101-999 |
| 6 |
900-031 |
Spring Washer 5mm (BLK)
|
CA$1.99
|
|
|
900-031 |
| 7 |
102-401 |
Stator
|
CA$98.89
|
|
|
102-401 |
| 8 |
102-394 |
Anti Vibration Motor Mount (Small)
|
CA$6.64
|
|
|
102-394 |
| 9 |
101-257 |
Anti Vibration Motor Mount (Big)
|
CA$7.80
|
|
|
101-257 |
| 10 |
900-059 |
Nut, Hex M8 (Zn)
|
CA$2.07
|
|
|
900-059 |
| 11 |
101-265 |
Fuel Tank
|
CA$50.62
|
|
|
101-265 |
| 12 |
101-687 |
Fuel Shutoff Valve
|
CA$9.36
|
|
|
101-687 |
| 13 |
900-067 |
Hose Clamp 7.5mm
|
CA$2.41
|
|
|
900-067 |
| 14 |
102-396 |
Complete Engine Assembly (420cc)
|
CA$326.79
|
|
|
102-396 |
| 15 |
101-258 |
Crankcase Cover Guard
|
CA$6.53
|
|
|
101-258 |
| 16 |
101-264 |
Fuel Cap
|
CA$10.17
|
|
|
101-264 |
| 17 |
900-270 |
Rotor Bolt, Flange M10X255 (Zn)
|
CA$5.95
|
|
|
900-270 |
| 18 |
900-017 |
Flat Washer 30x10x4mm (Zn)
|
CA$3.08
|
|
|
900-017 |
| 19 |
900-088 |
Lock Nut, Flange M6 (Zn)
|
CA$2.07
|
|
|
900-088 |
| 20 |
900-120 |
Stator Bolt, Flange M6x165 (Zn)
|
CA$3.99
|
|
|
900-120 |
| 21 |
900-001 |
Bolt, Flange M6x12 (Zn)
|
CA$2.08
|
|
|
900-001 |
| 22 |
900-062 |
Nut, Serrated Flange M10x1.25 (Zn)
|
CA$2.34
|
|
|
900-062 |
| 23 |
101-260 |
Air Filter Bracket
|
CA$3.76
|
|
|
101-260 |
| 24 |
900-025 |
Nut, Serrated Flange M6 (Zn)
|
CA$1.99
|
|
|
900-025 |
| 25 |
900-036 |
Hose Clamp 10mm
|
CA$2.51
|
|
|
900-036 |
| 26 |
101-269 |
Muffler Gasket
|
CA$5.86
|
|
|
101-269 |
| 27 |
102-397 |
Muffler
|
CA$43.16
|
|
|
102-397 |
| 28 |
900-063 |
Spring Washer 8mm (BLK)
|
CA$1.99
|
|
|
900-063 |
| 29 |
101-268 |
Muffler Bracket
|
CA$7.01
|
|
|
101-268 |
| 30 |
900-064 |
Bolt, Flange M8x30 (Zn)
|
CA$2.41
|
|
|
900-064 |
| 31 |
900-083 |
Bolt, Flange M8x16 (Zn)
|
CA$2.18
|
|
|
900-083 |
| 32 |
900-177 |
Bolt, Flange M6x28 (Zn)
|
CA$2.15
|
|
|
900-177 |
| 33 |
101-234 |
Frame Wire
|
CA$4.69
|
|
|
101-234 |
| 34 |
102-398 |
Control Panel Assembly (HG6850)
|
CA$108.04
|
|
|
102-398 |
| 35 |
900-074 |
Flat Washer 12x6x0.9mm (Red Paper)
|
CA$1.99
|
|
|
900-074 |
| 36 |
101-284 |
Voltage Regulator (5.5-7.5KW)
|
CA$30.46
|
|
|
101-284 |
| 37 |
900-012 |
Bolt, Flange M5x16 (Zn)
|
CA$2.03
|
|
|
900-012 |
| 38 |
900-057 |
Bolt, Flange M5x12 (Zn)
|
CA$2.07
|
|
|
900-057 |
| 39 |
101-259 |
Dust Shield
|
CA$2.35
|
|
|
101-259 |
| 40 |
900-178 |
Bolt with flat washer, Flange M6x25 (Zn)
|
CA$2.44
|
|
|
900-178 |
| 41 |
101-378 |
Motor Cover (rear)
|
CA$9.58
|
|
|
101-378 |
| 42 |
101-249 |
Stand (grey)
|
CA$7.84
|
|
|
101-249 |
| 43 |
101-250 |
Anti Vibration Mount
|
CA$4.37
|
|
|
101-250 |
| 44 |
900-081 |
Nut, Serrated Flange M8 (Zn)
|
CA$2.18
|
|
|
900-081 |
| 45 |
101-246 |
Wheel Axle
|
CA$5.25
|
|
|
101-246 |
| 46 |
900-155 |
Hose Clamp 9.5mm
|
CA$2.25
|
|
|
900-155 |
| 47 |
101-248 |
10" Wheel
|
CA$21.39
|
|
|
101-248 |
| 48 |
101-247 |
Cotter Pin
|
CA$2.78
|
|
|
101-247 |
| 49 |
101-243 |
Handle
|
CA$23.10
|
|
|
101-243 |
| 50 |
900-027 |
Serrated Lock Washer 6mm (Zn)
|
CA$2.04
|
|
|
900-027 |
| 51 |
101-252 |
Handle Connecting Bracket (Medal, Grey)
|
CA$9.78
|
|
|
101-252 |
| 52 |
101-244 |
Handle Connecting Bracket (Plastic)
|
CA$5.49
|
|
|
101-244 |
| 53 |
900-061 |
25mm-thread Bolt, Flange M6x55 (Zn)
|
CA$2.15
|
|
|
900-061 |
| 54 |
101-285 |
Gas Return Hose 4x8x450mm (fuel tank & air filter)
|
CA$5.49
|
|
|
101-285 |
| 55 |
101-261 |
Side Bar
|
CA$13.74
|
|
|
101-261 |
| 56 |
101-263 |
Purge Valve
|
CA$10.75
|
|
|
101-263 |
| 57 |
900-058 |
Flat Washer 37x14x4mm (BLK)
|
CA$2.70
|
|
|
900-058 |
| 58 |
101-251 |
Handle Sleeve (Rubber)
|
CA$4.81
|
|
|
101-251 |
| 59 |
101-230 |
Grounding Block
|
CA$8.26
|
|
|
101-230 |
| 60 |
101-231 |
Ground Wire
|
CA$5.49
|
|
|
101-231 |
| 61 |
101-245 |
Detent Pin
|
CA$6.94
|
|
|
101-245 |
| 62 |
101-669 |
ON/OFF Switch 16A (BLK)
|
CA$4.76
|
|
|
101-669 |
| 63 |
102-399 |
Circuit Breaker (23A)
|
CA$34.93
|
|
|
102-399 |
| 64 |
101-240 |
Low Oil Indicator Light
|
CA$6.24
|
|
|
101-240 |
| 65 |
101-144 |
3-hole Receptacle L5-30R
|
CA$22.63
|
|
|
101-144 |
| 66 |
101-237 |
4-hole Receptacle 120/240V L14-30R
|
CA$15.68
|
|
|
101-237 |
| 67 |
101-236 |
Duplex Receptacle L5-20R
|
CA$7.44
|
|
|
101-236 |
| 68 |
101-045 |
Reset Button Switch 20A
|
CA$8.36
|
|
|
101-045 |
| 69 |
101-858 |
Receptacle Cover L5-30R/L14-30R
|
CA$6.24
|
|
|
101-858 |
| 70 |
101-664 |
Duplex Receptacle Cover L5-20/GFCI
|
CA$4.77
|
|
|
101-664 |
| 71 |
101-857 |
Reset Button Switch Cover
|
CA$5.33
|
|
|
101-857 |
| 72 |
101-266 |
Control Panel Housing
|
CA$20.38
|
|
|
101-266 |
| 73 |
102-270 |
Brush Assembly
|
CA$6.06
|
|
|
102-270 |
| 74 |
102-271 |
Connecting Terminal
|
CA$5.67
|
|
|
102-271 |
| 75 |
102-269 |
Fuel Gauge
|
CA$8.03
|
|
|
102-269 |
|
102-265 |
Spark Plug Wrench (22x105mm)
|
CA$4.88
|
|
|
102-265 |
|
102-338 |
Funnel
|
CA$4.56
|
|
|
102-338 |
|
900-265 |
English Manual (HG Series)
|
CA$6.97
|
|
|
900-265 |
|
900-266 |
French Manual (HG Series)
|
CA$6.97
|
|
|
900-266 |
