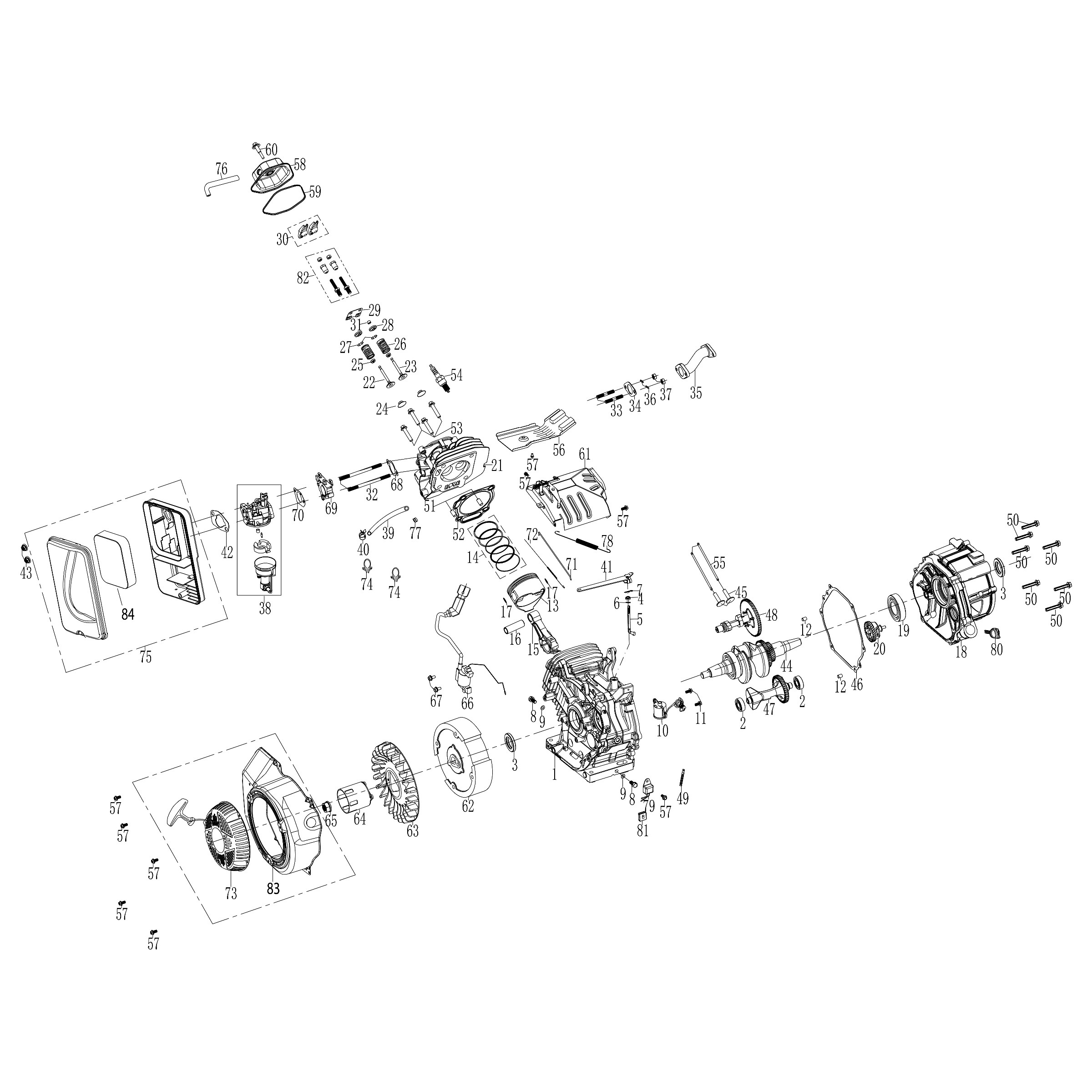

Engine

Grouped product items
No. Item No. Product Name Price Qty
1 102-402 Crankcase
CA$90.22
102-402
2 101-597 Bearing 6202
CA$5.67
101-597
3 101-598 Oil Seal 52x35xH8mm
CA$8.36
101-598
5 101-600 Governor Arm Shaft
CA$3.84
101-600
6 900-126 Flat Washer 17x8x1mm (BLK)
CA$2.07
900-126
7 101-601 Cotter Pin 1.4x5.8x17mm (Zn)
CA$2.15
101-601
8 900-127 Drain Bolt, Flange M12x15 (Zn)
CA$2.81
900-127
9 900-128 Flat Washer 20x12x1.5mm, Drain Bolt
CA$2.07
900-128
10 101-602 Engine Oil Level Sensor
CA$8.10
101-602
11 900-085 Bolt, Flange M6x16 (Zn)
CA$2.07
900-085
13 101-911 Piston (190F, H66.5mm)
CA$17.78
101-911
14 101-912 Piston Ring Set (190F)
CA$12.53
101-912
15 101-605 Connecting Rod Assembly
CA$14.30
101-605
16 101-732 Piston Pin 20X62.5mm
CA$5.07
101-732
17 900-103 Piston Pin Clip 20mm
CA$1.99
900-103
18 102-224 Crankcase Cover
CA$43.81
102-224
19 101-609 Bearing 6207
CA$12.06
101-609
20 101-917 Governor Assembly
CA$8.87
101-917
21 101-611 Cylinder Head (192F)
CA$53.81
101-611
22 101-612 Intake Valve
CA$10.65
101-612
23 101-613 Exhaust Valve
CA$10.65
101-613
24 101-614 Valve Spring Retainer
CA$2.89
101-614
25 101-615 Valve Oil Seal
CA$4.11
101-615
26 101-616 Valve Spring
CA$3.33
101-616
27 900-116 Valve Lock Clamp
CA$2.89
900-116
28 101-618 Valve Spring Seat
CA$4.49
101-618
29 101-619 Push Rod Guider
CA$2.98
101-619
30 101-620 Valve Rocker
CA$4.11
101-620
31 101-621 Valve Cap
CA$2.80
101-621
32 900-129 Stud Bolt M6/8x110 (Zn)
CA$3.47
900-129
33 900-107 Stud Bolt M8x40 (BLK)
CA$2.87
900-107
34 101-653 Exhaust Gasket
CA$2.50
101-653
35 102-226 Exhaust Pipe
CA$10.79
102-226
36 900-063 Spring Washer 8mm (BLK)
CA$1.99
900-063
37 900-059 Nut, Hex M8 (Zn)
CA$2.07
900-059
38 102-227 Carburetor
CA$38.14
102-227
39 102-403 Fuel Hose 4x8x170mm
CA$5.07
102-403
40 900-067 Hose Clamp 7.5mm
CA$2.41
900-067
41 101-625 Regulating Arm
CA$5.19
101-625
42 101-934 Air Filter Gasket
CA$3.48
101-934
43 900-025 Nut, Serrated Flange M6 (Zn)
CA$1.99
900-025
44 102-229 Crankshaft
CA$56.51
102-229
45 101-925 Valve Lifter
CA$4.24
101-925
46 101-926 Crankcase Gasket
CA$6.75
101-926
47 101-927 Balance Shaft
CA$16.61
101-927
48 101-928 Camshaft Assembly
CA$21.23
101-928
49 101-716 Wiring Harness Clip
CA$2.44
101-716
50 900-130 Bolt, Flange M8x40 (Zn)
CA$2.54
900-130
51 900-123 Dowel Pin 12x19mm
CA$2.12
900-123
52 101-929 Cylinder Head Gasket
CA$7.44
101-929
53 900-131 30mm-thread Bolt, Flange M10x1.25x80 (Zn)
CA$3.84
900-131
54 101-476 Spark Plug (F7TC)
CA$7.80
101-476
55 101-632 Push Rod
CA$4.19
101-632
56 101-633 Air Deflector
CA$4.10
101-633
57 900-001 Bolt, Flange M6x12 (Zn)
CA$2.08
900-001
58 101-634 Cylinder Head Cover
CA$10.36
101-634
59 101-635 Cylinder Head Cover Gasket
CA$6.57
101-635
60 900-132 Bolt, Cylinder Head Cover
CA$4.11
900-132
61 102-231 Regulating Mount
CA$10.99
102-231
62 101-933 Flywheel Assembly
CA$38.51
101-933
63 101-274 Flywheel Fan (Plastic)
CA$7.79
101-274
64 101-273 Starting Flange
CA$7.25
101-273
65 900-065 Nut, Serrated Flange M16 (Zn)
CA$3.76
900-065
66 101-639 Ignition Coil
CA$15.04
101-639
67 900-089 Bolt, Flange M6x25 (Zn)
CA$2.18
900-089
68 101-640 Inlet Gasket
CA$2.17
101-640
69 101-641 Carburetor Connecting Block
CA$3.97
101-641
70 101-642 Carburetor Gasket
CA$2.17
101-642
71 101-644 Pulling Rod
CA$2.44
101-644
72 900-016 Fine Regulating Spring
CA$2.34
900-016
74 101-594 Wire Clip (Q shape)
CA$2.35
101-594
73 101-281 Recoil Starter
CA$18.16
101-281
75 101-270 Air Filter Assembly
CA$16.09
101-270
76 101-648 Breath Hose
CA$5.97
101-648
77 101-501 Outlet Hose Grommet
CA$2.15
101-501
78 900-232 Back Spring
CA$2.44
900-232
79 101-502 Amplifier
CA$5.80
101-502
80 102-233 Engine Oil Dipstick
CA$3.76
102-233
81 101-638 Wire Grommet (Rubber)
CA$2.39
101-638
82 900-105 Bolt and Nut Set, Valve Rocker
CA$4.19
900-105
83 101-283 Fan Cover
CA$17.86
101-283
84 101-418 Air Filter (foam)
CA$12.48
101-418
86 102-668 Carburetor Jet Kit (2000-3000ft, 3000-5000ft, 5000-6000ft, 6000-7000ft)
CA$7.19
102-668
