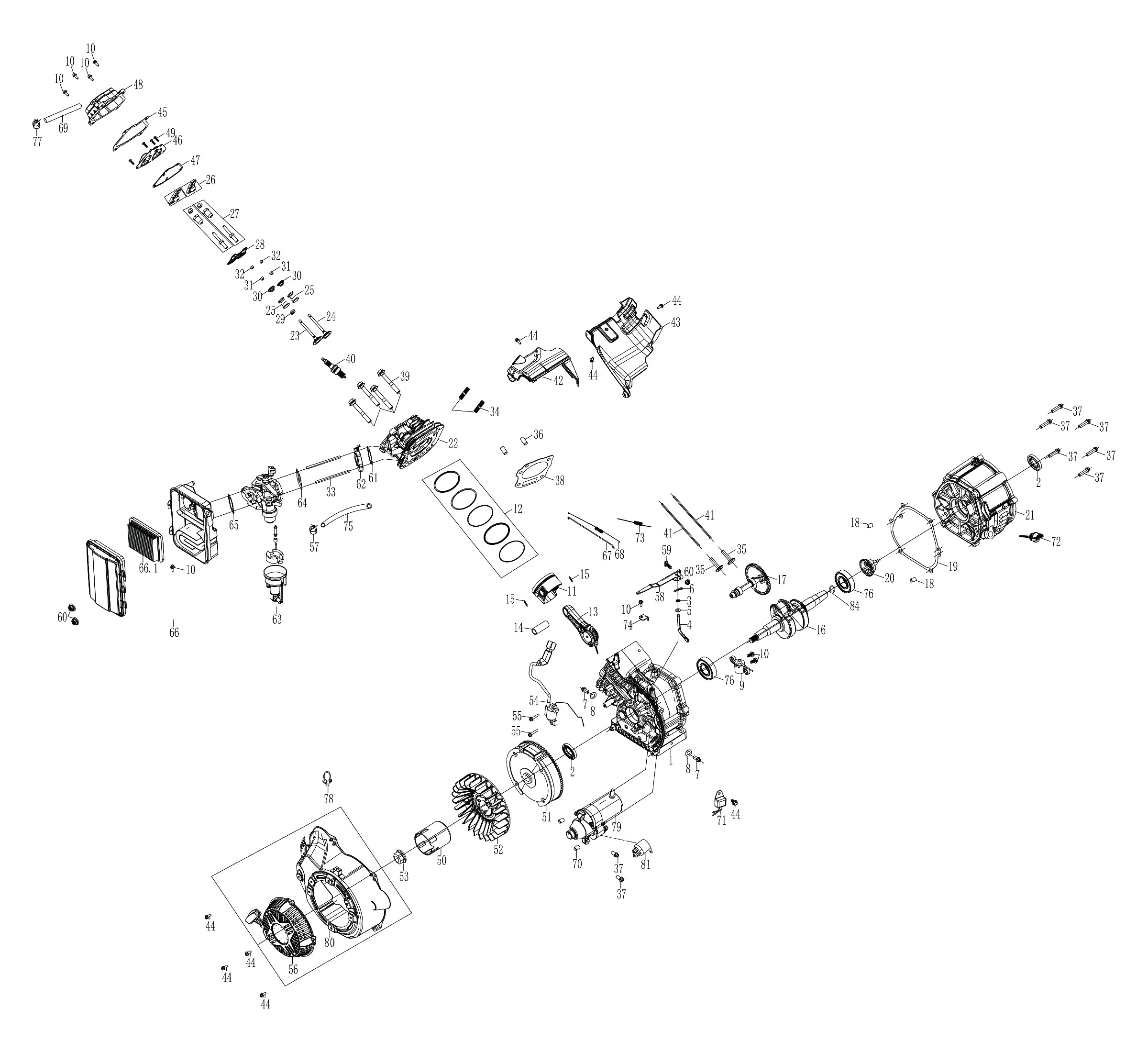

Engine

Grouped product items
No. Item No. Product Name Price Qty
1 101-542 Crankcase
CA$65.51
101-542
2 101-543 Oil Seal 46x30xH8mm (with oil return groove line)
CA$6.36
101-543
3 101-544 Governor Arm Shaft Seal 11x6xH4mm
CA$3.16
101-544
4 101-545 Governor Arm Shaft
CA$3.65
101-545
5 900-112 Flat Washer 13x6x0.95mm (BLK)
CA$2.04
900-112
6 101-546 Cotter Pin
CA$2.22
101-546
7 900-101 Drain Bolt, Flange M10x1.25x15 (Zn)
CA$2.61
900-101
8 900-100 Flat Washer 15x10x1.5mm (Zn)
CA$2.04
900-100
9 101-547 Engine Oil Level Sensor
CA$8.76
101-547
10 900-085 Bolt, Flange M6x16 (Zn)
CA$2.07
900-085
11 101-548 Piston (175F, H41.4mm)
CA$15.55
101-548
12 101-549 Piston Ring Set (175F)
CA$16.82
101-549
13 101-550 Connecting Rod Assembly
CA$12.52
101-550
14 101-551 Piston Pin 18x47mm
CA$4.67
101-551
15 900-104 Piston Pin Clip 18mm
CA$1.99
900-104
16 101-552 Crankshaft
CA$46.72
101-552
17 101-553 Camshaft Assembly
CA$23.75
101-553
18 900-055 Dowel Pin 8x12mm
CA$2.04
900-055
19 101-554 Crankcase Gasket
CA$6.08
101-554
20 101-555 Governor Assembly
CA$7.51
101-555
21 101-556 Crankcase Cover
CA$31.28
101-556
22 101-557 Cylinder Head (175F)
CA$39.60
101-557
23 101-558 Intake Valve
CA$8.46
101-558
24 101-559 Exhaust Valve
CA$9.63
101-559
25 900-060 Valve Spring
CA$2.81
900-060
26 101-561 Valve Rocker
CA$3.45
101-561
27 900-105 Bolt and Nut Set, Valve Rocker
CA$4.19
900-105
28 101-562 Push Rod Guider
CA$3.28
101-562
29 101-464 Valve Oil Seal
CA$3.89
101-464
30 104-633 Valve Spring Seat
CA$3.90
104-633
31 101-564 Valve Lock Clamp
CA$2.85
101-564
32 101-467 Valve Cap
CA$3.65
101-467
33 900-106 Stud Bolt M6x93
CA$2.87
900-106
34 900-107 Stud Bolt M8x40 (BLK)
CA$2.87
900-107
35 101-565 Valve Lifter
CA$3.77
101-565
36 900-184 Dowel pin 12x16mm
CA$2.12
900-184
37 900-064 Bolt, Flange M8x30 (Zn)
CA$2.41
900-064
38 101-566 Cylinder Head Gasket
CA$6.92
101-566
39 900-121 30mm-thread Bolt, Flange M10x1.25x70 (Zn)
CA$3.73
900-121
40 101-692 Spark Plug (F7RTC)
CA$18.32
101-692
41 101-568 Push Rod
CA$3.82
101-568
42 101-569 Air Deflector
CA$7.29
101-569
43 101-570 Engine Shroud
CA$8.22
101-570
44 900-001 Bolt, Flange M6x12 (Zn)
CA$2.08
900-001
45 101-571 Cylinder Head Cover Gasket
CA$4.88
101-571
46 101-572 Cylinder Head Cover (Inner)
CA$6.66
101-572
47 101-573 Cylinder Head (Inner) Cover Gasket
CA$3.94
101-573
48 101-574 Cylinder Head Cover
CA$11.87
101-574
49 900-007 Bolt, Phillips Pan Head M4x10 (Zn)
CA$1.99
900-007
50 101-575 Starting Flange
CA$8.15
101-575
51 101-482 Flywheel Assembly
CA$33.32
101-482
52 101-576 Flywheel Fan (Plastic)
CA$7.71
101-576
53 900-110 Nut, Serrated Flange M14 (Zn)
CA$3.76
900-110
54 104-634 Ignition Coil
CA$14.11
104-634
55 900-089 Bolt, Flange M6x25 (Zn)
CA$2.18
900-089
56 102-171 Recoil Starter
CA$14.16
102-171
57 900-067 Hose Clamp 7.5mm
CA$2.41
900-067
58 101-578 Regulating Arm
CA$5.07
101-578
59 900-122 T-type Bolt M6x23 (Zn)
CA$2.15
900-122
60 900-025 Nut, Serrated Flange M6 (Zn)
CA$1.99
900-025
61 101-580 Inlet Gasket
CA$2.21
101-580
62 101-581 Carburetor Connecting Block
CA$3.71
101-581
63 104-635 Carburetor (with manual choke lever)
CA$37.10
104-635
64 101-583 Carburetor Gasket
CA$2.21
101-583
65 104-636 Air Filter Gasket
CA$3.86
104-636
66 101-584 Air Filter Assembly
CA$18.80
101-584
66.1 101-510 Air Filter (Paper)
CA$7.92
101-510
67 101-585 Pulling Rod
CA$2.42
101-585
68 900-015 Fine Regulating Spring
CA$2.29
900-015
69 101-587 Breath Hose
CA$3.91
101-587
70 900-124 Dowel Pin 10x10mm
CA$2.05
900-124
71 101-502 Amplifier
CA$5.80
101-502
72 104-545 Engine Oil Dipstick
CA$3.45
104-545
73 900-020 Back Spring
CA$2.55
900-020
74 101-590 Regulating Bracket
CA$3.41
101-590
75 102-385 Fuel Hose 4x8x145 mm (air filter and carburetor)
CA$4.63
102-385
76 101-592 Bearing 6206
CA$10.53
101-592
77 900-166 Hose Clip 14mm
CA$2.00
900-166
78 101-594 Wire Clip (Q shape)
CA$2.35
101-594
79 101-595 Starting Motor Assembly (with relay)
CA$56.34
101-595
80 103-826 Fan Cover (BLK)
CA$17.65
103-826
81 102-173 Starting Motor Relay
CA$15.91
102-173
102-696 Carburetor Jet Kit (2000-3000ft, 3000-6000ft, 6000-7000ft)
CA$7.19
102-696
