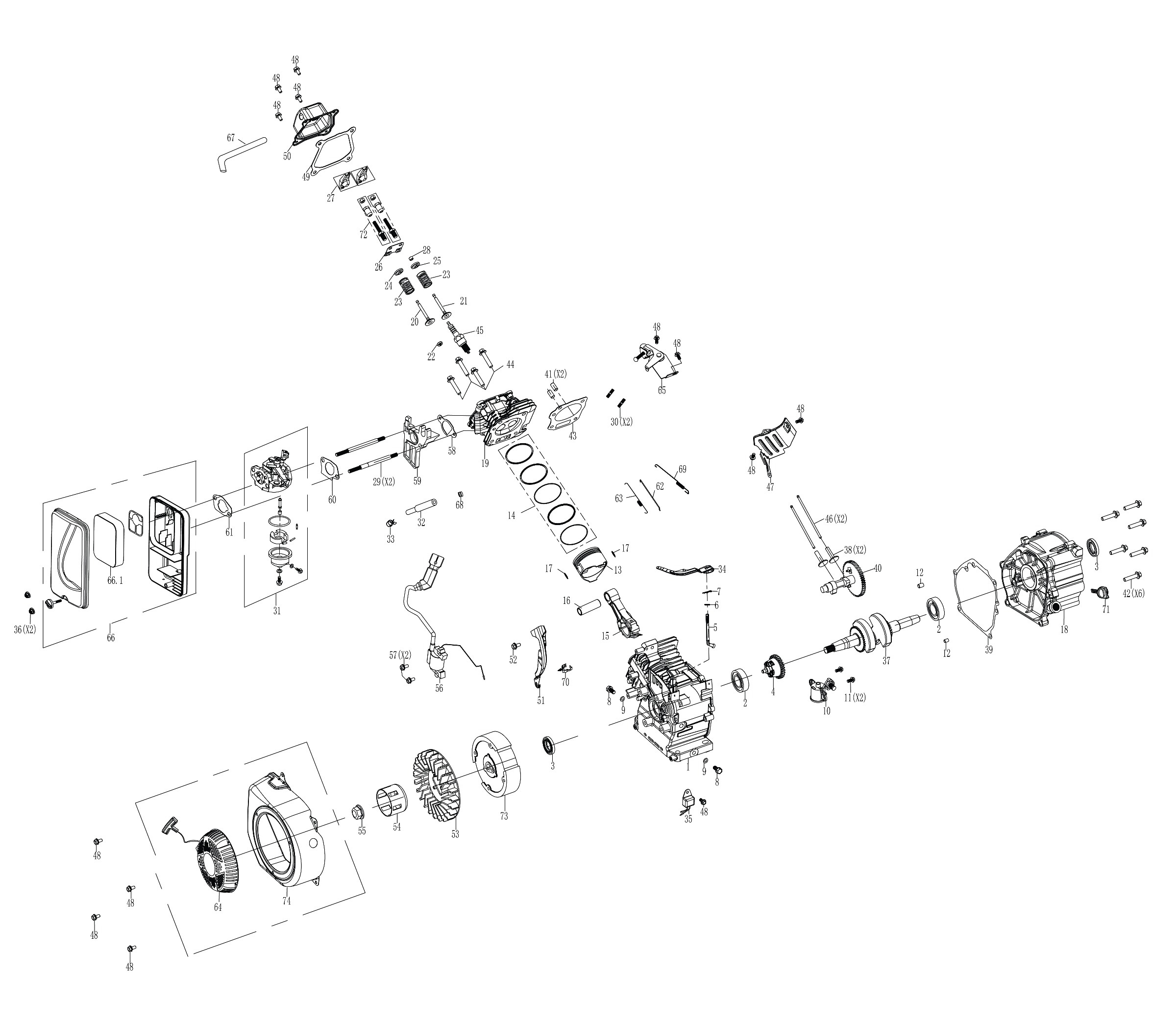

Engine

Grouped product items
No. Item No. Product Name Price Qty
1 102-380 Crankcase
CA$56.26
102-380
2 101-451 Bearing 6205
CA$8.62
101-451
3 101-452 Oil Seal 41.25x25xH6mm
CA$5.53
101-452
4 102-381 Governor Assembly
CA$6.19
102-381
5 102-382 Governor Arm Shaft
CA$3.33
102-382
6 900-112 Flat Washer 13x6x0.95mm (BLK)
CA$2.04
900-112
7 101-262 Cotter Pin
CA$1.99
101-262
8 900-101 Drain Bolt, Flange M10x1.25x15 (Zn)
CA$2.61
900-101
9 900-100 Flat Washer 15x10x1.5mm (Zn)
CA$2.04
900-100
10 101-455 Engine Oil Sensor
CA$9.31
101-455
11 900-085 Bolt, Flange M6x16 (Zn)
CA$2.07
900-085
12 900-055 Dowel Pin 8x12mm
CA$2.04
900-055
13 102-383 Piston (170F, H46.5mm)
CA$14.20
102-383
14 101-457 Piston Ring Set (170F)
CA$9.02
101-457
15 102-033 Connecting Rod Assembly
CA$11.69
102-033
16 101-495 Piston Pin 18x53mm
CA$5.01
101-495
17 900-104 Piston Pin Clip 18mm
CA$1.99
900-104
18 101-459 Crankcase Cover
CA$29.00
101-459
19 102-055 Cylinder Head (170F)
CA$28.76
102-055
20 101-462 Intake Valve
CA$7.44
101-462
21 101-463 Exhaust Valve
CA$7.44
101-463
22 101-464 Valve Oil Seal
CA$3.89
101-464
23 900-056 Valve Spring
CA$2.70
900-056
24 101-507 Valve Spring Seat
CA$3.89
101-507
25 101-508 (Exhaust) Valve Spring Seat
CA$4.34
101-508
26 101-465 Push Rod Guider
CA$3.41
101-465
27 101-466 Valve Rocker
CA$3.24
101-466
28 101-467 Valve Cap
CA$3.65
101-467
29 900-106 Stud Bolt M6x93
CA$2.87
900-106
30 900-107 Stud Bolt M8x40 (BLK)
CA$2.87
900-107
31 102-384 Carburetor
CA$23.79
102-384
32 104-344 Fuel Hose 4x8x154mm (air filter and carburetor)
CA$4.63
104-344
33 900-067 Hose Clamp 7.5mm
CA$2.41
900-067
34 101-469 Regulating Arm
CA$4.91
101-469
35 101-502 Amplifier
CA$5.80
101-502
36 900-025 Nut, Serrated Flange M6 (Zn)
CA$1.99
900-025
37 102-386 Crankshaft
CA$38.48
102-386
38 102-037 Valve Lifter
CA$3.84
102-037
39 101-473 Crankcase Gasket
CA$5.49
101-473
40 102-038 Camshaft Assembly
CA$15.29
102-038
41 900-109 Dowel Pin 10x14mm
CA$2.04
900-109
42 900-064 Bolt, Flange M8x30 (Zn)
CA$2.41
900-064
43 101-475 Cylinder Head Gasket
CA$5.93
101-475
44 900-108 27mm-thread Bolt, Flange M8x60 (Zn)
CA$3.07
900-108
45 101-692 Spark Plug (F7RTC)
CA$18.32
101-692
46 101-477 Push Rod
CA$3.55
101-477
47 102-387 Air Deflector
CA$5.43
102-387
48 900-001 Bolt, Flange M6x12 (Zn)
CA$2.08
900-001
49 101-479 Cylinder Head Cover Gasket
CA$3.41
101-479
50 101-480 Cylinder Head Cover
CA$8.46
101-480
51 101-836 Wind Cover
CA$4.11
101-836
52 900-175 Bolt, Flange M6x20 (Zn)
CA$2.07
900-175
53 102-388 Flywheel Fan (Plastic)
CA$5.90
102-388
54 101-575 Starting Flange
CA$8.15
101-575
55 900-110 Nut, Serrated Flange M14 (Zn)
CA$3.76
900-110
56 103-391 Ignition Coil
CA$12.71
103-391
57 900-089 Bolt, Flange M6x25 (Zn)
CA$2.18
900-089
58 102-041 Inlet Gasket
CA$2.04
102-041
59 101-487 Carburetor Connecting Block
CA$4.19
101-487
60 101-488 Carburetor Gasket
CA$2.07
101-488
61 101-713 Air Filter Gasket
CA$3.48
101-713
62 101-490 Pulling Rod
CA$2.35
101-490
63 900-344 Fine Regulating Spring
CA$2.30
900-344
64 102-171 Recoil Starter
CA$14.16
102-171
65 101-493 Regulating Mount
CA$5.30
101-493
66 102-390 Air Filter Assembly
CA$12.75
102-390
66.1 102-369 Air Filter (foam)
CA$5.72
102-369
67 101-500 Breath Hose
CA$4.50
101-500
68 101-501 Outlet Hose Grommet
CA$2.15
101-501
69 900-238 Back Spring
CA$2.25
900-238
70 101-588 Plastic Clip (Q shape)
CA$2.81
101-588
71 104-545 Engine Oil Dipstick
CA$3.45
104-545
72 900-105 Bolt and Nut Set, Valve Rocker
CA$4.19
900-105
73 101-837 Flywheel Assembly
CA$23.34
101-837
74 104-621 Fan Cover (BLK)
CA$16.28
104-621
102-666 Carburetor Jet Kit (2000-3000ft, 3000-6000ft, 6000-7000ft)
CA$7.19
102-666
