CA Hyundai EN

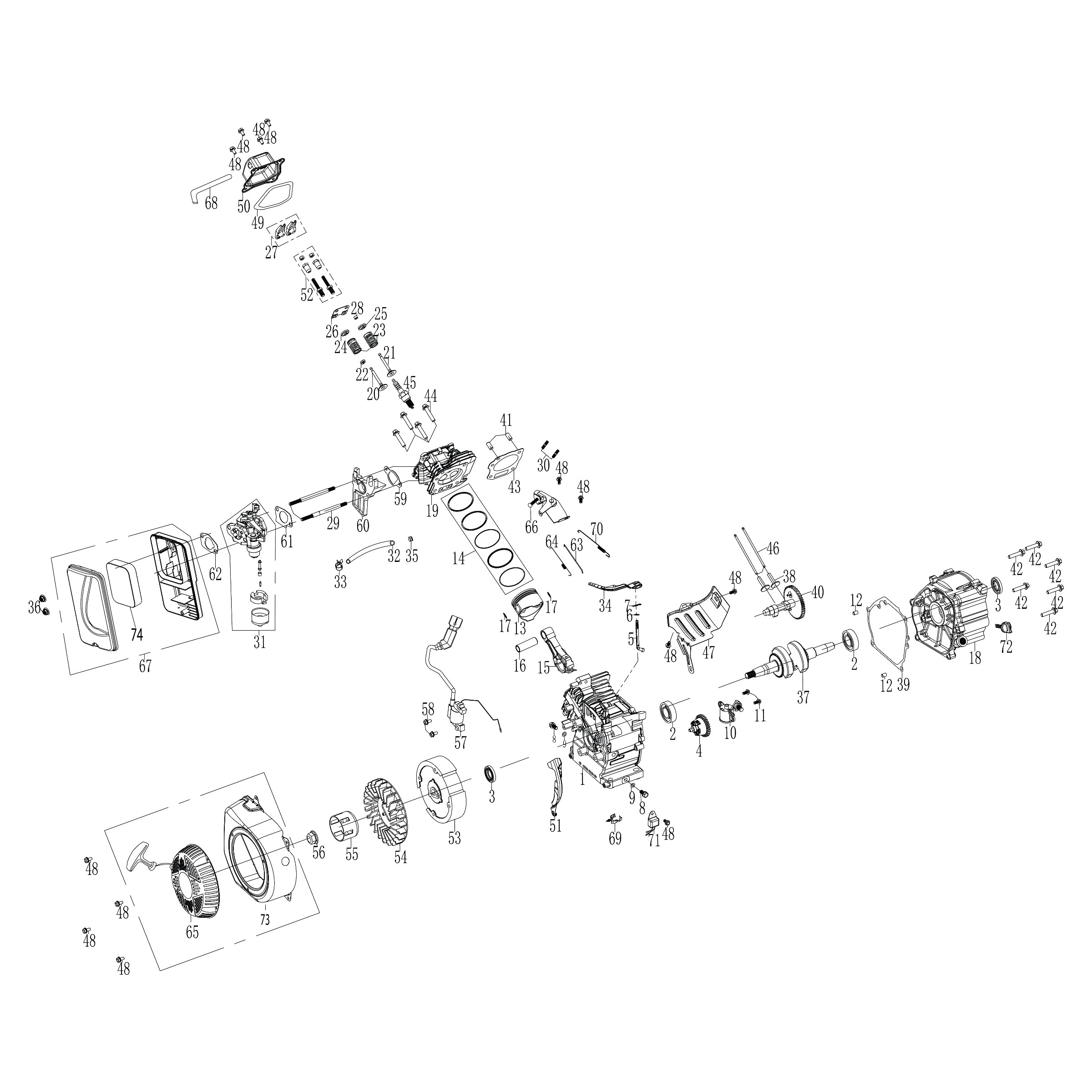

Engine

Grouped product items
No. Item No. Product Name Price Qty
1 101-512 Crankcase
CA$50.88
101-512
2 101-451 Bearing 6205
CA$8.62
101-451
3 101-452 Oil Seal 41.25x25xH6mm
CA$5.53
101-452
4 101-453 Governor Assembly
CA$6.14
101-453
5 101-454 Governor Arm Shaft
CA$3.97
101-454
6 900-112 Flat Washer 13x6x0.95mm (BLK)
CA$2.04
900-112
7 101-262 Cotter Pin
CA$1.99
101-262
8 900-101 Drain Bolt, Flange M10x1.25x15 (Zn)
CA$2.61
900-101
9 900-100 Flat Washer 15x10x1.5mm (Zn)
CA$2.04
900-100
10 101-455 Engine Oil Sensor
CA$9.31
101-455
11 900-085 Bolt, Flange M6x16 (Zn)
CA$2.07
900-085
12 900-329 Dowel Pin 8x14mm
CA$2.04
900-329
13 101-456 Piston (170F, H46.5mm)
CA$13.79
101-456
14 101-457 Piston Ring Set (170F)
CA$9.02
101-457
15 101-458 Connecting Rod Assembly
CA$11.79
101-458
16 101-495 Piston Pin 18x53mm
CA$5.01
101-495
17 900-104 Piston Pin Clip 18mm
CA$1.99
900-104
18 101-459 Crankcase Cover
CA$29.00
101-459
19 101-461 Cylinder Head (170F)
CA$32.18
101-461
20 101-462 Intake Valve
CA$7.44
101-462
21 102-362 Exhaust Valve
CA$7.84
102-362
22 101-464 Valve Oil Seal
CA$3.89
101-464
23 900-056 Valve Spring
CA$2.70
900-056
24 101-507 Valve Spring Seat
CA$3.89
101-507
25 101-508 (Exhaust) Valve Spring Seat
CA$4.34
101-508
26 101-465 Push Rod Guider
CA$3.41
101-465
27 101-466 Valve Rocker
CA$3.24
101-466
28 101-467 Valve Cap
CA$3.65
101-467
29 900-106 Stud Bolt M6x93
CA$2.87
900-106
30 900-107 Stud Bolt M8x40 (BLK)
CA$2.87
900-107
31 102-363 Carburetor
CA$26.00
102-363
32 102-364 Fuel Hose 4x8x120mm
CA$4.24
102-364
33 900-067 Hose Clamp 7.5mm
CA$2.41
900-067
34 101-469 Regulating Arm
CA$4.91
101-469
35 101-501 Outlet Hose Grommet
CA$2.15
101-501
36 900-025 Nut, Serrated Flange M6 (Zn)
CA$1.99
900-025
37 101-471 Crankshaft
CA$32.37
101-471
38 101-472 Valve Lifter
CA$3.90
101-472
39 101-473 Crankcase Gasket
CA$5.49
101-473
40 101-474 Camshaft Assembly
CA$16.86
101-474
41 900-109 Dowel Pin 10x14mm
CA$2.04
900-109
42 900-064 Bolt, Flange M8x30 (Zn)
CA$2.41
900-064
43 101-475 Cylinder Head Gasket
CA$5.93
101-475
44 900-108 27mm-thread Bolt, Flange M8x60 (Zn)
CA$3.07
900-108
45 101-476 Spark Plug (F7TC)
CA$7.80
101-476
46 101-477 Push Rod
CA$3.55
101-477
47 101-478 Air Deflector
CA$5.19
101-478
48 900-001 Bolt, Flange M6x12 (Zn)
CA$2.08
900-001
49 101-479 Cylinder Head Cover Gasket
CA$3.41
101-479
50 101-480 Cylinder Head Cover
CA$8.46
101-480
51 101-836 Wind Cover
CA$4.11
101-836
52 900-105 Bolt and Nut Set, Valve Rocker
CA$4.19
900-105
53 101-837 Flywheel Assembly
CA$23.34
101-837
54 101-483 Flywheel Fan (Plastic)
CA$5.12
101-483
55 101-484 Starting Flange
CA$5.12
101-484
56 900-110 Nut, Serrated Flange M14 (Zn)
CA$3.76
900-110
57 101-485 Ignition Coil
CA$16.82
101-485
58 900-089 Bolt, Flange M6x25 (Zn)
CA$2.18
900-089
59 101-486 Inlet Gasket
CA$2.18
101-486
60 101-487 Carburetor Connecting Block
CA$4.19
101-487
61 101-488 Carburetor Gasket
CA$2.07
101-488
62 101-489 Air Filter Gasket
CA$2.07
101-489
63 101-490 Pulling Rod
CA$2.35
101-490
64 900-344 Fine Regulating Spring
CA$2.30
900-344
65 102-367 Recoil Starter
CA$14.90
102-367
66 101-493 Regulating Mount
CA$5.30
101-493
67 101-494 Air Filter Assembly
CA$14.05
101-494
68 101-500 Breath Hose
CA$4.50
101-500
69 101-588 Plastic Clip (Q shape)
CA$2.81
101-588
70 900-228 Back Spring
CA$2.30
900-228
71 101-502 Amplifier
CA$5.80
101-502
72 102-366 Engine Oil Dipstick
CA$3.33
102-366
73 102-368 Fan Cover
CA$14.01
102-368
74 101-504 Air Filter (foam)
CA$5.06
101-504
102-610 Carburetor Jet Kit (2000-3000ft, 3000-6000ft, 6000-7000ft)
CA$7.19
102-610
