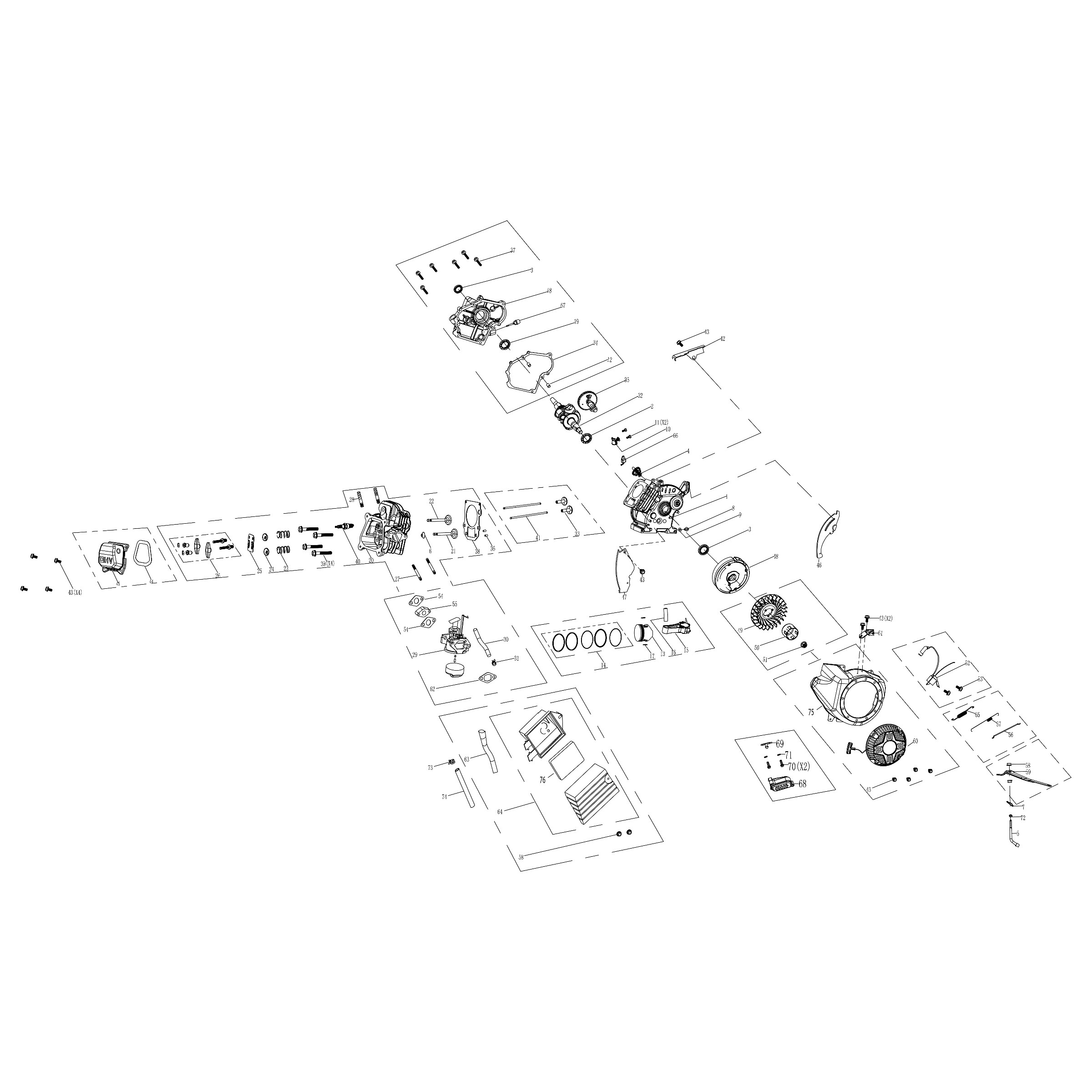

Engine

Grouped product items
No. Item No. Product Name Price Qty
1 101-073 Crankcase
CA$41.48
101-073
2 101-075 Bearing 6203
CA$5.95
101-075
3 101-076 Oil Seal 30x17xH6mm
CA$3.25
101-076
4 101-078 Governor Assembly
CA$7.67
101-078
5 101-080 Governor Arm Shaft
CA$5.60
101-080
6 101-081 Valve Spring Retainer
CA$3.61
101-081
7 101-262 Cotter Pin
CA$1.99
101-262
8 900-101 Drain Bolt, Flange M10x1.25x15 (Zn)
CA$2.61
900-101
9 900-100 Flat Washer 15x10x1.5mm (Zn)
CA$2.04
900-100
10 101-082 Engine Oil Level Sensor
CA$9.87
101-082
11, 43 900-001 Bolt, Flange M6x12 (Zn)
CA$2.08
900-001
12 900-055 Dowel Pin 8x12mm
CA$2.04
900-055
13 101-085 Piston (156F, H46.5mm)
CA$11.56
101-085
14 101-086 Piston Ring Set (156F)
CA$8.92
101-086
15 101-088 Connecting Rod Assembly
CA$10.70
101-088
16 101-091 Piston Pin 14x44mm
CA$4.30
101-091
17 900-258 Piston Pin Clip 14mm
CA$1.99
900-258
18 101-100 Crankcase Cover
CA$26.21
101-100
19 101-101 Bearing 6303
CA$7.79
101-101
20 101-104 Cylinder Head (156F)
CA$29.73
101-104
21 101-105 Intake Valve
CA$6.31
101-105
22 101-110 Exhaust Valve
CA$6.31
101-110
23 900-259 Valve Spring
CA$2.61
900-259
24 101-507 Valve Spring Seat
CA$3.89
101-507
25 101-397 Push Rod Guider
CA$3.47
101-397
26 101-423 Valve Rocker Assembly (Set of 2)
CA$4.76
101-423
27 900-106 Stud Bolt M6x93
CA$2.87
900-106
28 900-107 Stud Bolt M8x40 (BLK)
CA$2.87
900-107
29 101-431 Carburetor
CA$25.83
101-431
30 101-855 Fuel Hose 4x8x110mm
CA$4.24
101-855
31 900-067 Hose Clamp 7.5mm
CA$2.41
900-067
32 101-509 Crankshaft
CA$28.68
101-509
33 101-511 Valve Lifter
CA$3.76
101-511
34 101-527 Crankcase Gasket
CA$4.81
101-527
35 101-591 Camshaft Assembly
CA$13.88
101-591
36 900-329 Dowel Pin 8x14mm
CA$2.04
900-329
37 900-177 Bolt, Flange M6x28 (Zn)
CA$2.15
900-177
38 101-626 Cylinder Head Gasket
CA$5.19
101-626
39 900-260 24mm-thread Bolt, Flange M8x50 (Zn)
CA$2.61
900-260
40 101-703 Spark Plug (E6TC)
CA$5.95
101-703
41 101-864 Push Rod
CA$3.41
101-864
42 101-868 Air Deflector
CA$4.76
101-868
44 101-479 Cylinder Head Cover Gasket
CA$3.41
101-479
45 101-480 Cylinder Head Cover
CA$8.46
101-480
46 101-875 Wind Cover (Left)
CA$2.95
101-875
47 102-225 Wind Cover (Right)
CA$2.95
102-225
48 102-228 Flywheel Assembly
CA$18.60
102-228
49 102-230 Flywheel Fan (Plastic)
CA$4.43
102-230
50 102-307 Starting Flange
CA$5.07
102-307
51 900-208 Nut, Serrated Flange M12 (Zn)
CA$2.54
900-208
52 102-308 Ignition Coil
CA$17.95
102-308
53 900-175 Bolt, Flange M6x20 (Zn)
CA$2.07
900-175
54 102-309 Carburetor (Inlet) Gasket
CA$2.18
102-309
55 102-310 Carburetor Connecting Block
CA$3.19
102-310
56 102-311 Pulling Rod
CA$2.25
102-311
57 900-261 Fine Regulating Spring
CA$2.25
900-261
58 900-025 Nut, Serrated Flange M6 (Zn)
CA$1.99
900-025
59 102-312 Regulating Arm
CA$3.90
102-312
60 102-322 Recoil Starter
CA$16.15
102-322
61 102-314 Regulating Mount
CA$5.37
102-314
62 102-315 Air Filter Gasket
CA$2.04
102-315
63 102-316 Breath Hose
CA$2.61
102-316
64 102-317 Air Filter Assembly
CA$10.26
102-317
65 900-262 Back Spring
CA$2.25
900-262
66 101-502 Amplifier
CA$5.80
101-502
67 102-318 Engine Oil Dipstick
CA$3.55
102-318
68 102-319 Secondary Gulp Valve
CA$12.57
102-319
69 102-320 Joint Flange
CA$3.76
102-320
70 900-201 Bolt, Flange M6x8 (Zn)
CA$2.04
900-201
71 900-263 Sping Washer 6mm (Zn)
CA$2.78
900-263
72 900-280 E-clip 6mm
CA$2.35
900-280
73 900-155 Hose Clamp 9.5mm
CA$2.25
900-155
74 102-321 Outlet Hose
CA$6.31
102-321
75 102-323 Fan Cover (HG1500)
CA$11.51
102-323
76 102-324 Air Filter (foam)
CA$5.79
102-324
102-306 Carburetor Jet Kit (2000-3000ft, 3000-6000ft, 6000-7000ft)
CA$7.19
102-306
