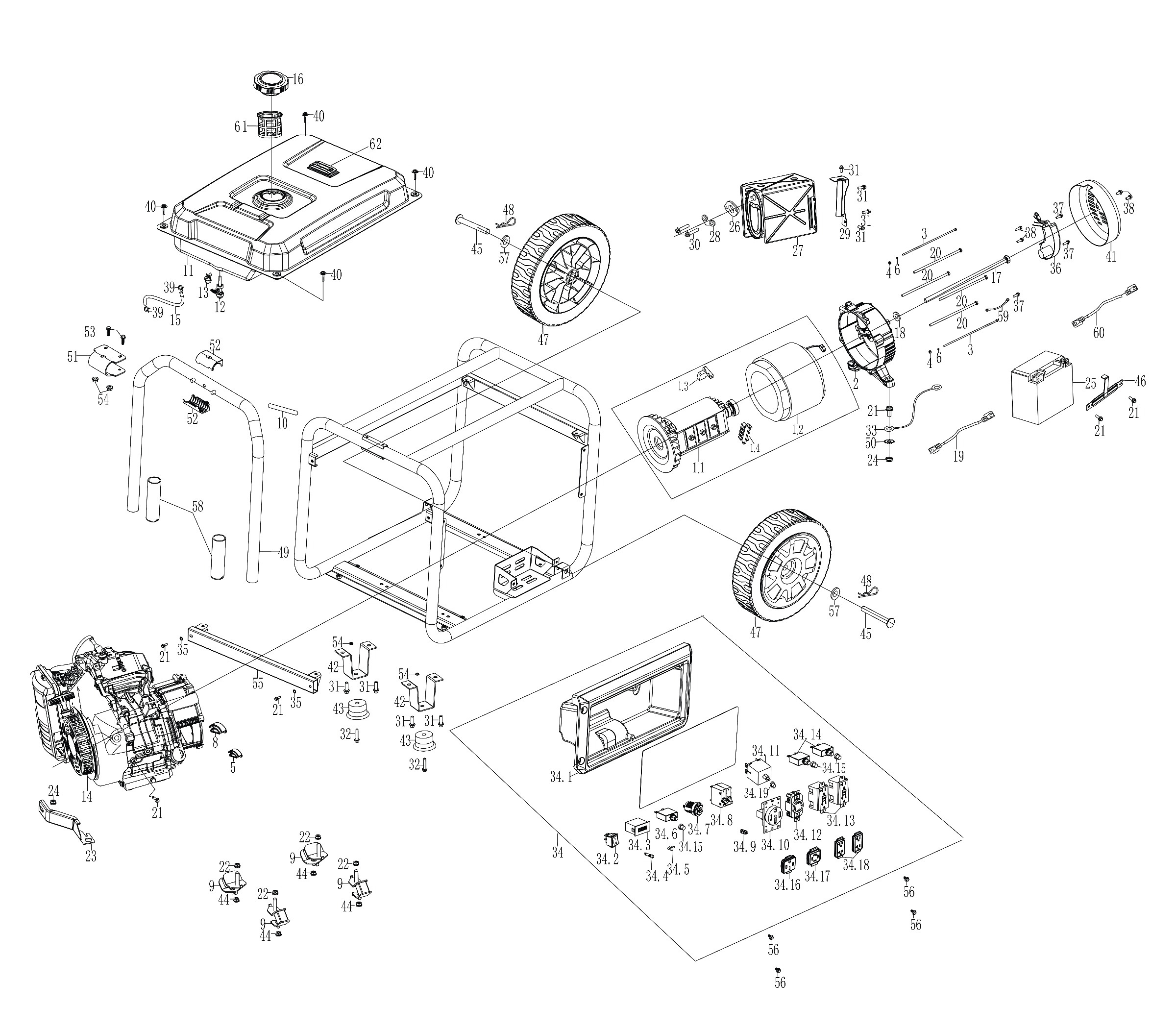

| 1.1 |
102-334 |
Rotor
|
CA$129.75
|
|
|
102-334 |
| 1.2 |
102-335 |
Stator
|
CA$129.75
|
|
|
102-335 |
| 1.3 |
102-270 |
Brush Assembly
|
CA$6.06
|
|
|
102-270 |
| 1.4 |
102-271 |
Connecting Terminal
|
CA$5.67
|
|
|
102-271 |
| 2 |
104-663 |
Motor Stand
|
CA$30.77
|
|
|
104-663 |
| 3 |
900-090 |
Stator Bolt, Flange M5x230 (BLK)
|
CA$4.37
|
|
|
900-090 |
| 4 |
900-033 |
Nut, Hex M5 (BLK)
|
CA$1.99
|
|
|
900-033 |
| 5 |
101-444 |
Dust Shield
|
CA$2.95
|
|
|
101-444 |
| 6 |
900-031 |
Spring Washer 5mm (BLK)
|
CA$1.99
|
|
|
900-031 |
| 8 |
101-443 |
Dust Shield
|
CA$3.11
|
|
|
101-443 |
| 9 |
101-257 |
Anti Vibration Motor Mount (Big)
|
CA$7.80
|
|
|
101-257 |
| 10 |
101-245 |
Detent Pin
|
CA$6.94
|
|
|
101-245 |
| 11 |
104-665 |
Fuel Tank
|
CA$51.96
|
|
|
104-665 |
| 12 |
101-687 |
Fuel Shutoff Valve
|
CA$9.36
|
|
|
101-687 |
| 13 |
900-067 |
Hose Clamp 7.5mm
|
CA$2.41
|
|
|
900-067 |
| 14 |
104-687 |
Complete Engine Assembly (457cc)
|
CA$370.84
|
|
|
104-687 |
| 15 |
104-667 |
Fuel Hose 4x9x200mm (Canister & Air Filter)
|
CA$2.85
|
|
|
104-667 |
| 16 |
104-113 |
Fuel Cap
|
CA$10.60
|
|
|
104-113 |
| 17 |
900-086 |
Rotor Bolt, Flange M10x285 (Zn)
|
CA$6.50
|
|
|
900-086 |
| 18 |
900-017 |
Flat Washer 30x10x4mm (Zn)
|
CA$3.08
|
|
|
900-017 |
| 19 |
101-233 |
Positive Battery Lead (Red)
|
CA$6.92
|
|
|
101-233 |
| 20 |
900-087 |
Stator Bolt, Flange M6x200 (Zn)
|
CA$3.97
|
|
|
900-087 |
| 21 |
900-001 |
Bolt, Flange M6x12 (Zn)
|
CA$2.08
|
|
|
900-001 |
| 22 |
900-062 |
Nut, Serrated Flange M10x1.25 (Zn)
|
CA$2.34
|
|
|
900-062 |
| 23 |
101-433 |
Air Filter Bracket
|
CA$4.43
|
|
|
101-433 |
| 24 |
900-025 |
Nut, Serrated Flange M6 (Zn)
|
CA$1.99
|
|
|
900-025 |
| 25 |
101-429 |
Lead Acid Battery (12V, 14Ah)
|
CA$62.33
|
|
|
101-429 |
| 26 |
101-269 |
Muffler Gasket
|
CA$5.86
|
|
|
101-269 |
| 27 |
101-434 |
Muffler
|
CA$48.52
|
|
|
101-434 |
| 28 |
900-063 |
Spring Washer 8mm (BLK)
|
CA$1.99
|
|
|
900-063 |
| 29 |
101-268 |
Muffler Bracket
|
CA$7.01
|
|
|
101-268 |
| 30 |
900-064 |
Bolt, Flange M8x30 (Zn)
|
CA$2.41
|
|
|
900-064 |
| 31 |
900-083 |
Bolt, Flange M8x16 (Zn)
|
CA$2.18
|
|
|
900-083 |
| 32 |
900-177 |
Bolt, Flange M6x28 (Zn)
|
CA$2.15
|
|
|
900-177 |
| 33 |
104-126 |
Ground Wire
|
CA$5.49
|
|
|
104-126 |
| 34 |
104-688 |
Control Panel Assembly (HG12000E)
|
CA$127.19
|
|
|
104-688 |
| 34.1 |
104-689 |
Control Panel Housing
|
CA$17.99
|
|
|
104-689 |
| 34.2 |
101-141 |
Ignition Switch
|
CA$9.99
|
|
|
101-141 |
| 34.3 |
101-239 |
Hour Meter
|
CA$26.85
|
|
|
101-239 |
| 34.4 |
101-854 |
Indicator Light
|
CA$5.90
|
|
|
101-854 |
| 34.5 |
101-393 |
Charging Port
|
CA$7.57
|
|
|
101-393 |
| 34.6 |
104-670 |
Reset Button Switch (8.3A)
|
CA$5.37
|
|
|
104-670 |
| 34.7 |
102-297 |
DC Cigarette Port (12V/8A)
|
CA$8.67
|
|
|
102-297 |
| 34.8 |
101-447 |
Circuit Breaker 38A
|
CA$36.99
|
|
|
101-447 |
| 34.9 |
101-395 |
Ground Terminal
|
CA$2.95
|
|
|
101-395 |
| 34.10 |
101-448 |
4-hole Receptacle 120/240V L14-50R
|
CA$18.42
|
|
|
101-448 |
| 34.11 |
101-449 |
Reset Button Switch 30A
|
CA$38.32
|
|
|
101-449 |
| 34.12 |
101-237 |
4-hole Receptacle 120/240V L14-30R
|
CA$15.68
|
|
|
101-237 |
| 34.13 |
101-236 |
Duplex Receptacle L5-20R
|
CA$7.44
|
|
|
101-236 |
| 34.14 |
101-396 |
Reset Button Switch 20A (L-Type)
|
CA$10.14
|
|
|
101-396 |
| 34.15 |
101-857 |
Reset Button Switch Cover
|
CA$5.33
|
|
|
101-857 |
| 37.16 |
104-103 |
Receptacle Cover L14-50R (2023 version)
|
CA$5.37
|
|
|
104-103 |
| 34.17 |
104-105 |
Receptacle Cover L14-30R (2023 version)
|
CA$5.37
|
|
|
104-105 |
| 34.18 |
104-106 |
Duplex Receptacle GFCI Cover (2023 version)
|
CA$5.72
|
|
|
104-106 |
| 34.19 |
101-535 |
Reset Button Switch Cover(30A)
|
CA$3.55
|
|
|
101-535 |
| 35 |
900-074 |
Flat Washer 12x6x0.9mm (Red Paper)
|
CA$1.99
|
|
|
900-074 |
| 36 |
102-329 |
Voltage Regulator (7-9KW)
|
CA$37.83
|
|
|
102-329 |
| 37 |
900-012 |
Bolt, Flange M5x16 (Zn)
|
CA$2.03
|
|
|
900-012 |
| 38 |
900-057 |
Bolt, Flange M5x12 (Zn)
|
CA$2.07
|
|
|
900-057 |
| 39 |
900-295 |
Hose Clamp 8.5mm
|
CA$2.35
|
|
|
900-295 |
| 40 |
900-178 |
Bolt with flat washer, Flange M6x25 (Zn)
|
CA$2.44
|
|
|
900-178 |
| 41 |
101-378 |
Motor Cover (rear)
|
CA$9.58
|
|
|
101-378 |
| 42 |
104-671 |
Stand (Blue)
|
CA$8.66
|
|
|
104-671 |
| 43 |
101-250 |
Anti Vibration Mount
|
CA$4.37
|
|
|
101-250 |
| 44 |
900-081 |
Nut, Serrated Flange M8 (Zn)
|
CA$2.18
|
|
|
900-081 |
| 45 |
104-672 |
Wheel Axle
|
CA$5.11
|
|
|
104-672 |
| 46 |
101-446 |
Battery Mounting Bar
|
CA$7.24
|
|
|
101-446 |
| 47 |
101-248 |
10" Wheel
|
CA$21.39
|
|
|
101-248 |
| 48 |
101-247 |
Cotter Pin
|
CA$2.78
|
|
|
101-247 |
| 49 |
104-673 |
Handle (Blue)
|
CA$23.30
|
|
|
104-673 |
| 50 |
900-027 |
Serrated Lock Washer 6mm (Zn)
|
CA$2.04
|
|
|
900-027 |
| 51 |
104-674 |
Handle Connecting Bracket (Medal, Blue)
|
CA$10.92
|
|
|
104-674 |
| 52 |
101-244 |
Handle Connecting Bracket (Plastic)
|
CA$5.49
|
|
|
101-244 |
| 53 |
900-061 |
25mm-thread Bolt, Flange M6x55 (Zn)
|
CA$2.15
|
|
|
900-061 |
| 54 |
900-147 |
Nylon Insert Lock Nut, Hex M6 (Zn)
|
CA$2.18
|
|
|
900-147 |
| 55 |
104-675 |
Side Bar (Blue)
|
CA$16.25
|
|
|
104-675 |
| 56 |
900-085 |
Bolt, Flange M6x16 (Zn)
|
CA$2.07
|
|
|
900-085 |
| 57 |
900-091 |
Flat Washer 38x13x3.8mm (Zn)
|
CA$2.70
|
|
|
900-091 |
| 58 |
101-251 |
Handle Sleeve (Rubber)
|
CA$4.81
|
|
|
101-251 |
| 59 |
101-374 |
Ground Wire
|
CA$4.03
|
|
|
101-374 |
| 60 |
101-232 |
Negative Battery Lead (BLK)
|
CA$8.10
|
|
|
101-232 |
| 61 |
101-999 |
Fuel Strainer
|
CA$3.65
|
|
|
101-999 |
| 62 |
101-276 |
Fuel Gauge
|
CA$6.14
|
|
|
101-276 |
|
103-379 |
Spark Arrester
|
CA$7.74
|
|
|
103-379 |
|
101-450 |
Wall Charger (14V 0.8Ah)
|
CA$20.66
|
|
|
101-450 |
