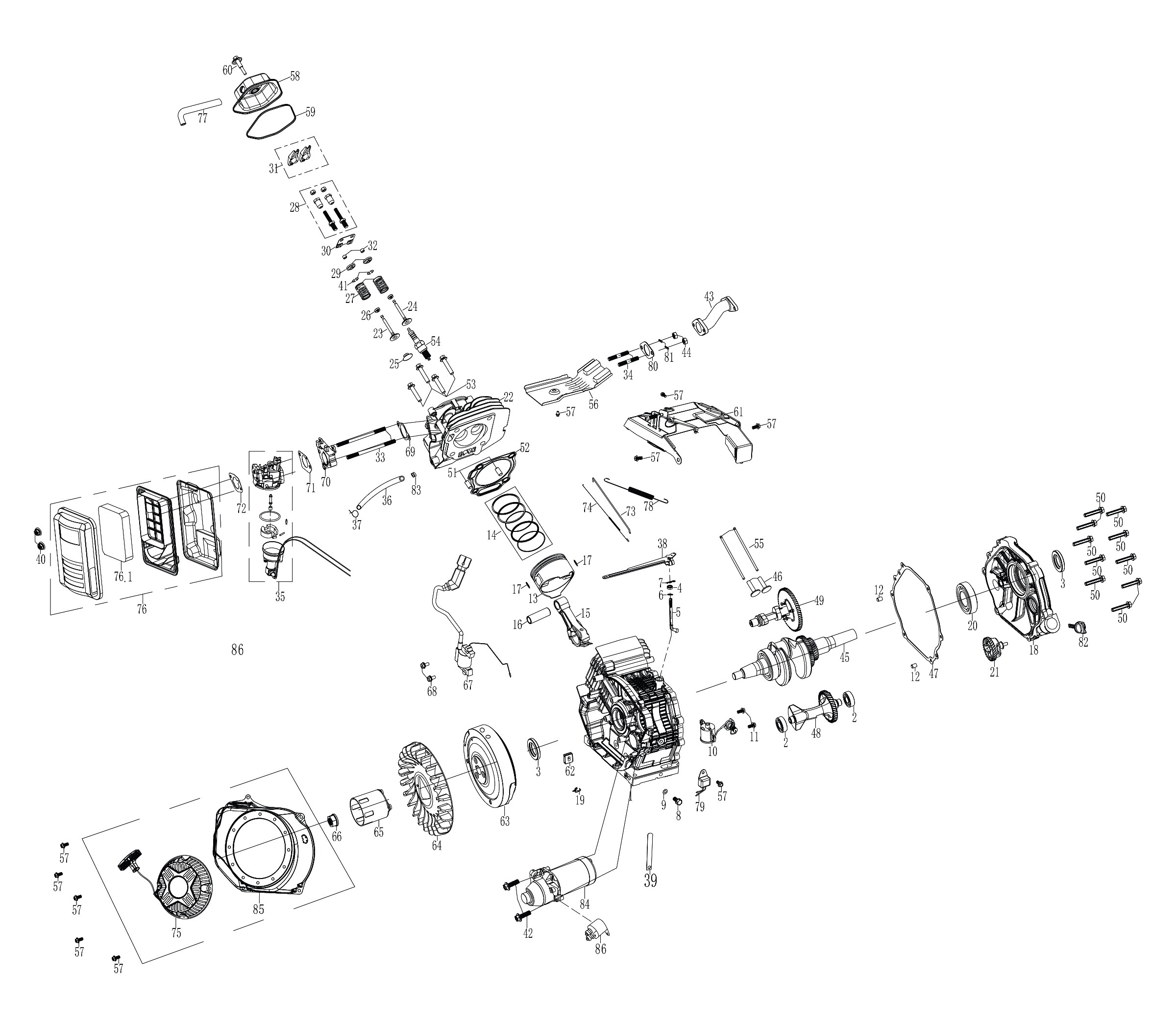

Engine

Grouped product items
No. Item No. Product Name Price Qty
1 101-596 Crankcase
CA$99.41
101-596
2 101-597 Bearing 6202
CA$5.67
101-597
3 101-598 Oil Seal 52x35xH8mm
CA$8.36
101-598
4 101-599 Governor Arm Shaft Seal 14x8xH5mm
CA$3.94
101-599
5 101-600 Governor Arm Shaft
CA$3.84
101-600
6 900-126 Flat Washer 17x8x1mm (BLK)
CA$2.07
900-126
7 101-601 Cotter Pin 1.4x5.8x17mm (Zn)
CA$2.15
101-601
8 900-127 Drain Bolt, Flange M12x15 (Zn)
CA$2.81
900-127
9 900-128 Flat Washer 20x12x1.5mm, Drain Bolt
CA$2.07
900-128
10 101-602 Engine Oil Level Sensor
CA$8.10
101-602
11 900-085 Bolt, Flange M6x16 (Zn)
CA$2.07
900-085
12 900-055 Dowel Pin 8x12mm
CA$2.04
900-055
13 101-603 Piston (192F, H65.5mm)
CA$18.75
101-603
14 101-604 Piston Ring Set (192F)
CA$15.25
101-604
15 101-605 Connecting Rod Assembly
CA$14.30
101-605
16 101-606 Piston Pin 20x62mm
CA$5.27
101-606
17 900-103 Piston Pin Clip 20mm
CA$1.99
900-103
18 104-690 Crankcase Cover
CA$44.29
104-690
19 101-594 Wire Clip (Q shape)
CA$2.35
101-594
20 101-609 Bearing 6207
CA$12.06
101-609
21 101-610 Governor Assembly
CA$10.34
101-610
22 101-611 Cylinder Head (192F)
CA$53.81
101-611
23 101-612 Intake Valve
CA$10.65
101-612
24 101-613 Exhaust Valve
CA$10.65
101-613
25 101-614 Valve Spring Retainer
CA$2.89
101-614
26 101-615 Valve Oil Seal
CA$4.11
101-615
27 101-616 Valve Spring
CA$3.33
101-616
28 900-105 Bolt and Nut Set, Valve Rocker
CA$4.19
900-105
29 101-618 Valve Spring Seat
CA$4.49
101-618
30 101-619 Push Rod Guider
CA$2.98
101-619
31 101-620 Valve Rocker
CA$4.11
101-620
32 101-621 Valve Cap
CA$2.80
101-621
33 900-129 Stud Bolt M6/8x110 (Zn)
CA$3.47
900-129
34 900-107 Stud Bolt M8x40 (BLK)
CA$2.87
900-107
35 102-336 Carburetor
CA$38.14
102-336
36 102-186 Fuel Hose 4x8x185mm (air Filter and carburetor)
CA$5.25
102-186
37 900-067 Hose Clamp 7.5mm
CA$2.41
900-067
38 101-625 Regulating Arm
CA$5.19
101-625
39 101-716 Wiring Harness Clip
CA$2.44
101-716
40 900-025 Nut, Serrated Flange M6 (Zn)
CA$1.99
900-025
41 900-116 Valve Lock Clamp
CA$2.89
900-116
42 900-135 20mm-thread Bolt, Flange M8x35 (Zn)
CA$2.04
900-135
43 101-643 Exhaust Pipe
CA$11.87
101-643
44 900-059 Nut, Hex M8 (Zn)
CA$2.07
900-059
45 102-187 Crankshaft
CA$60.53
102-187
46 101-627 Valve Lifter
CA$4.62
101-627
47 101-628 Crankcase Gasket
CA$8.40
101-628
48 101-629 Balance Shaft
CA$21.11
101-629
49 101-630 Camshaft Assembly
CA$26.08
101-630
50 900-130 Bolt, Flange M8x40 (Zn)
CA$2.54
900-130
51 900-123 Dowel Pin 12x19mm
CA$2.12
900-123
52 101-631 Cylinder Head Gasket
CA$7.89
101-631
53 901-266 Bolt, Flange M10x87 (Zn)
CA$3.67
901-266
54 101-692 Spark Plug (F7RTC)
CA$18.32
101-692
55 101-632 Push Rod
CA$4.19
101-632
56 101-633 Air Deflector
CA$4.10
101-633
57 900-001 Bolt, Flange M6x12 (Zn)
CA$2.08
900-001
58 101-634 Cylinder Head Cover
CA$10.36
101-634
59 101-635 Cylinder Head Cover Gasket
CA$6.57
101-635
60 900-132 Bolt, Cylinder Head Cover
CA$4.11
900-132
61 101-636 Regulating Mount
CA$15.42
101-636
62 101-638 Wire Grommet (Rubber)
CA$2.39
101-638
63 101-637 Flywheel Assembly
CA$47.46
101-637
64 101-274 Flywheel Fan (Plastic)
CA$7.79
101-274
65 101-273 Starting Flange
CA$7.25
101-273
66 900-065 Nut, Serrated Flange M16 (Zn)
CA$3.76
900-065
67 104-536 Ignition Coil
CA$15.12
104-536
68 900-089 Bolt, Flange M6x25 (Zn)
CA$2.18
900-089
69 101-640 Inlet Gasket
CA$2.17
101-640
70 101-641 Carburetor Connecting Block
CA$3.97
101-641
71 101-642 Carburetor Gasket
CA$2.17
101-642
72 101-934 Air Filter Gasket
CA$3.48
101-934
73 101-644 Pulling Rod
CA$2.44
101-644
74 900-016 Fine Regulating Spring
CA$2.34
900-016
75 102-191 Recoil Starter
CA$19.75
102-191
76 101-647 Air filter Assembly (EPA3, Steel)
CA$27.76
101-647
76.1 101-654 2-piece Air Filter (foam)
CA$5.93
101-654
77 101-648 Breath Hose
CA$5.97
101-648
78 900-009 Back Spring
CA$2.85
900-009
79 101-502 Amplifier
CA$5.80
101-502
80 101-653 Exhaust Gasket
CA$2.50
101-653
81 900-063 Spring Washer 8mm (BLK)
CA$1.99
900-063
82 104-684 Engine Oil Dipstick
CA$4.04
104-684
83 101-501 Outlet Hose Grommet
CA$2.15
101-501
84 101-652 Starting Motor Assembly (with relay)
CA$53.29
101-652
85 103-832 Fan Cover (BLK)
CA$14.42
103-832
86 102-193 Starting Motor Relay
CA$14.85
102-193
104-708 Carburetor Jet Kit (2000-3000ft, 3000-6000ft, 6000-7000ft)
CA$9.28
104-708
